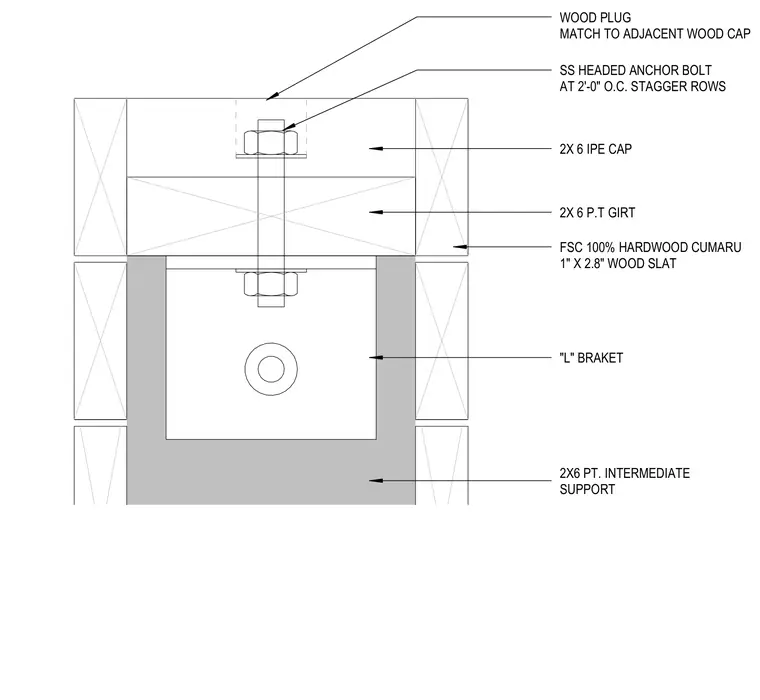

A 2x6 Ipe wood cap is secured over a 2x6 pressure-treated wood girt using stainless steel headed anchor bolts spaced at two feet on center in staggered rows, with bolt heads concealed by matching wood plugs. The framing is tied to a 2x6 pressure-treated intermediate support using an L-bracket connection. Vertical FSC 100% hardwood Cumaru wood slats measuring 1 inch by 2.8 inches flank the girt assembly.
FSC 100% HARDWOOD CUMARU 1" X 2.8" WOOD SLAT 2X 6 P.T GIRT 2X 6 IPE CAP SS HEADED ANCHOR BOLT AT 2'-0" O.C. STAGGER ROWS 2X6 PT. INTERMEDIATE SUPPORT "L" BRAKET WOOD PLUG MATCH TO ADJACENT WOOD CAP
