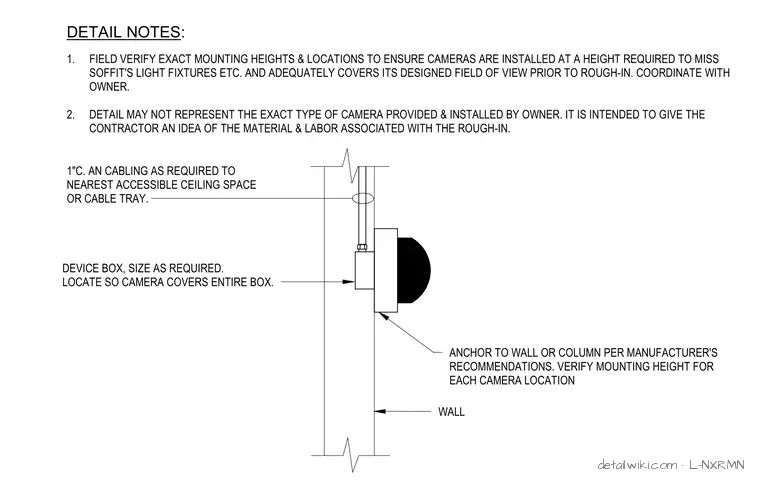

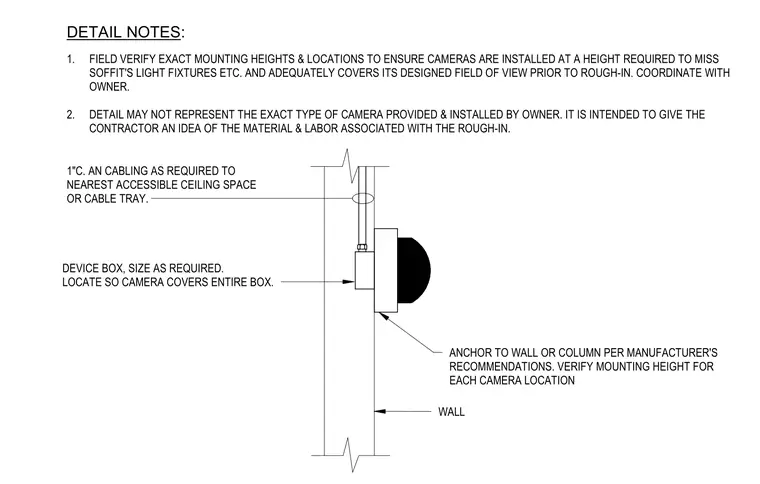

The security camera mounts directly to an exterior wall or column using anchors per the manufacturer's recommendations. Cabling runs through a one-inch conduit as required to the nearest accessible ceiling space or cable tray. A properly sized device box is located directly behind the camera housing. Field verification of mounting heights and locations is required prior to rough-in to clear soffit light fixtures and ensure proper field of view.
DETAIL NOTES: ANCHOR TO WALL OR COLUMN PER MANUFACTURER'S RECOMMENDATIONS. VERIFY MOUNTING HEIGHT FOR EACH CAMERA LOCATION WALL 1"C. AN CABLING AS REQUIRED TO NEAREST ACCESSIBLE CEILING SPACE OR CABLE TRAY. DEVICE BOX, SIZE AS REQUIRED. LOCATE SO CAMERA COVERS ENTIRE BOX. 1. FIELD VERIFY EXACT MOUNTING HEIGHTS & LOCATIONS TO ENSURE CAMERAS ARE INSTALLED AT A HEIGHT REQUIRED TO MISS SOFFIT'S LIGHT FIXTURES ETC. AND ADEQUATELY COVERS ITS DESIGNED FIELD OF VIEW PRIOR TO ROUGH-IN. COORDINATE WITH OWNER. 2. DETAIL MAY NOT REPRESENT THE EXACT TYPE OF CAMERA PROVIDED & INSTALLED BY OWNER. IT IS INTENDED TO GIVE THE CONTRACTOR AN IDEA OF THE MATERIAL & LABOR ASSOCIATED WITH THE ROUGH-IN.
