Landscape · L-NXNGZ

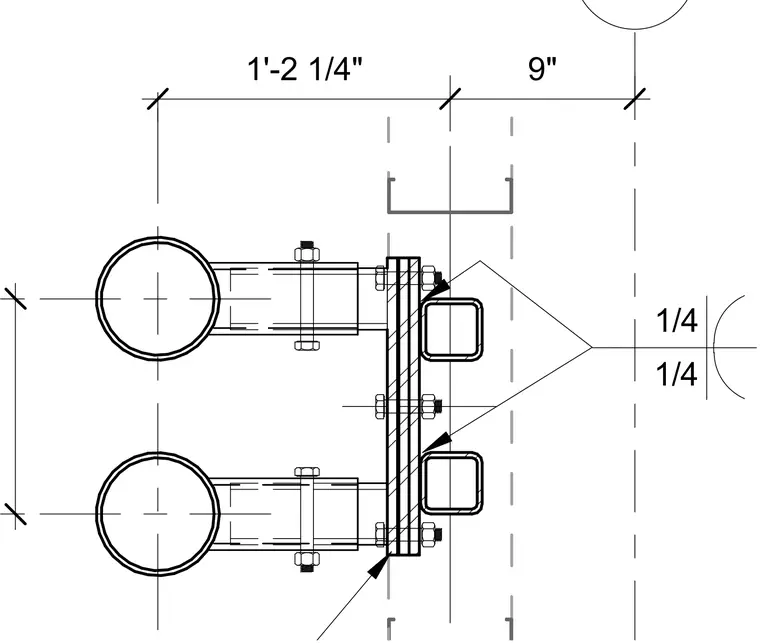

Double Downspout

Units: imperial
Sheet: LO-S5.0.5
Discipline: Landscape

Materials

Metal (misc.)Steel

Elements

Connections / Plates Drainage Waterproofing / Flashing

Text on the drawing

1'-2 1/4" 9" 1/4 1/4 10 1/2"
