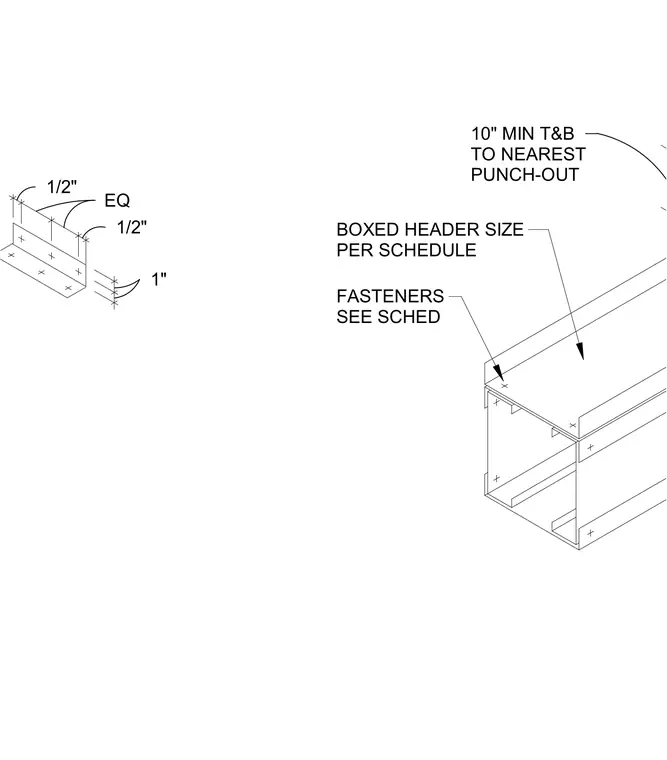

A cold-formed steel boxed header connects to jamb framing with fasteners sized per schedule. The boxed header requires a ten-inch minimum distance at the top and bottom to the nearest punch-out. Fastener placement includes one-half inch edge distance with equal spacing and a one-inch dimension between fastener rows.
FASTENERS SEE SCHED BOXED HEADER SIZE PER SCHEDULE 10" MIN T&B TO NEAREST PUNCH-OUT @ TOP & BOT OF HEADER EQ 1/2" 1/2" 1"
