Sink Base Cabinet

Materials

Elements

About this detail

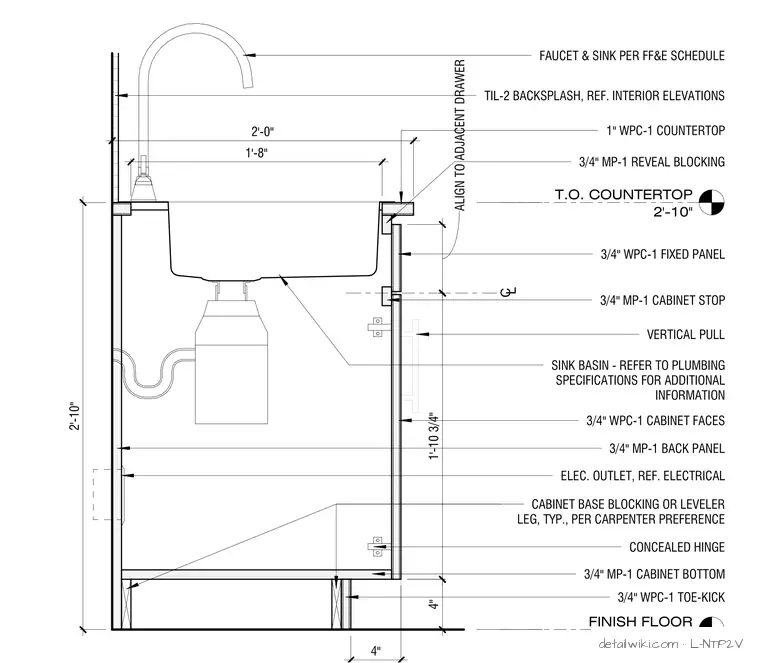

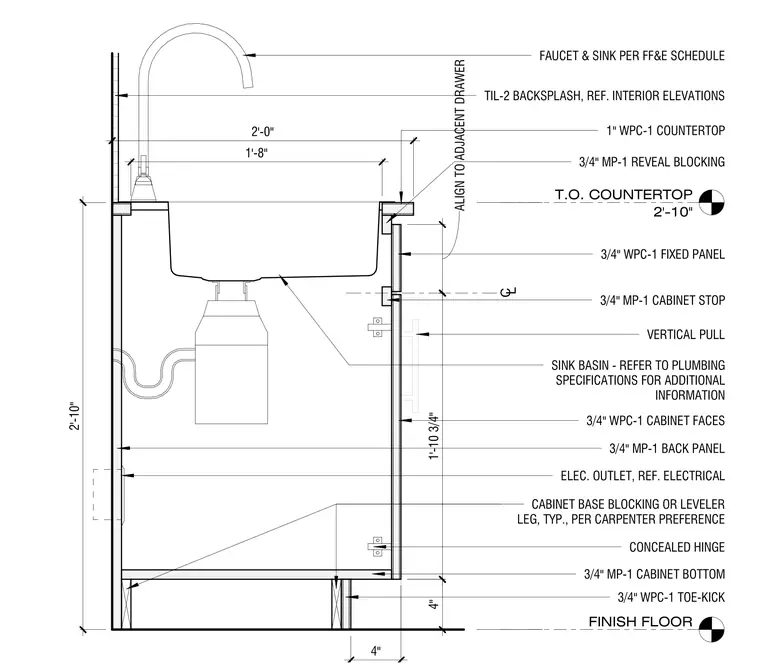

The sink base cabinet section detail shows a one-inch thick composite countertop resting on three-quarter inch wood paneling components. The assembly includes a three-quarter inch fixed panel, cabinet faces, a back panel, a cabinet bottom, and a four-inch toe-kick supported by cabinet base blocking or leveler legs per carpenter preference. Concealed hinges and a vertical pull operate the cabinet door, while a three-quarter inch cabinet stop aligns with adjacent drawers. A tile backsplash is specified at the wall, and the sink basin and faucet are coordinated per the plumbing and FF&E schedules.
