Landscape · L-NTK6D

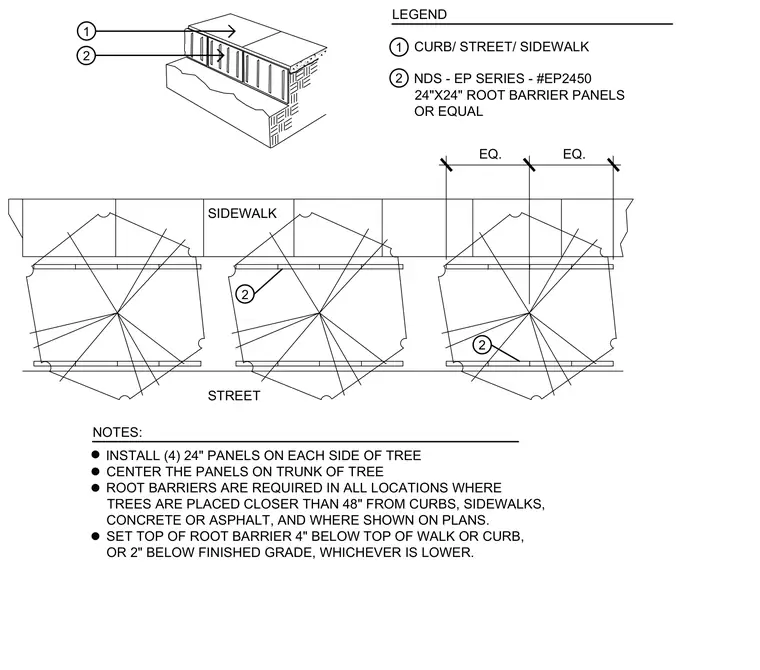

Tree Root Barrier Detail

Materials

Elements

About this detail

Install four twenty-four-inch root barrier panels on each side of the tree, centered on the tree trunk. Root barriers are required in all locations where trees are placed closer than forty-eight inches from curbs, sidewalks, concrete, or asphalt, and where shown on plans. Set the top of the root barrier four inches below the top of the walk or curb, or two inches below the finished grade, whichever is lower.
