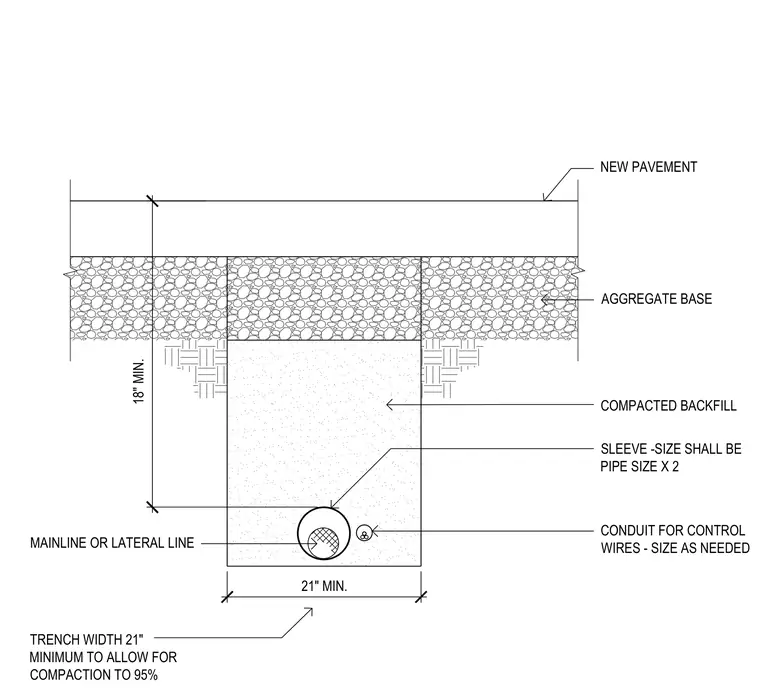

An underground utility installation beneath new pavement requires a minimum twenty-one-inch trench width to allow for compaction of the aggregate base to ninety-five percent. The trench contains a mainline or lateral line positioned within a pipe sleeve sized to twice the pipe diameter, accompanied by a conduit for control wires sized as needed. The embedment zone is filled with compacted backfill extending at least eighteen inches from the bottom of the aggregate base.
21" MIN. TRENCH WIDTH 21" MINIMUM TO ALLOW FOR COMPACTION TO 95% AGGREGATE BASE COMPACTED BACKFILL NEW PAVEMENT CONDUIT FOR CONTROL WIRES - SIZE AS NEEDED SLEEVE -SIZE SHALL BE PIPE SIZE X 2 18" MIN. MAINLINE OR LATERAL LINE
