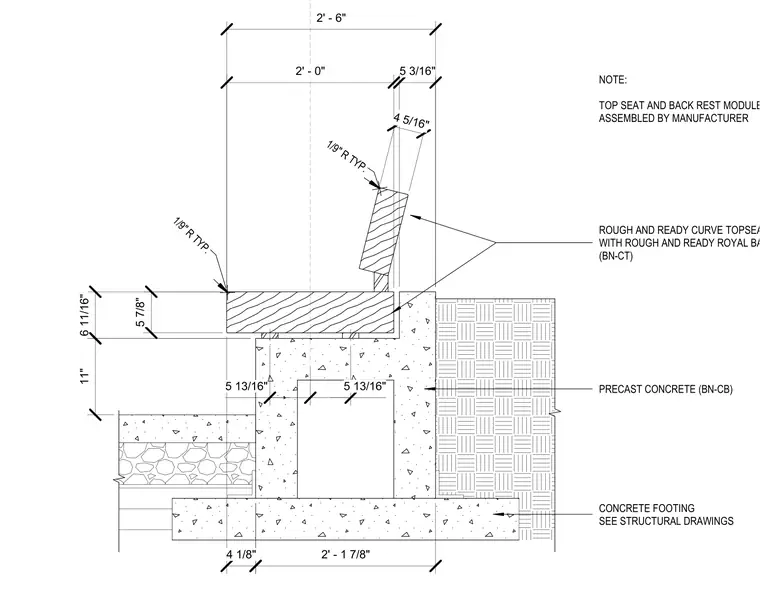

Pre-assembled wood top seat and backrest modules mount to a precast concrete curve topseat base supported by a concrete footing. The wood members feature typical radius edges and sit directly upon the precast concrete element. The concrete footing size and reinforcement are specified per the structural drawings.
2' - 6" 5 3/16" 2' - 0" 2' - 1 7/8" 4 1/8" 6 11/16" 5 7/8" 4 5/16" PRECAST CONCRETE (BN-CB) ROUGH AND READY CURVE TOPSEATS WITH ROUGH AND READY ROYAL BACK (BN-CT) NOTE: TOP SEAT AND BACK REST MODULES PRE- ASSEMBLED BY MANUFACTURER 1/9" R TYP. 1/9" R TYP. CONCRETE FOOTING SEE STRUCTURAL DRAWINGS 5 13/16" 5 13/16" 11"
