An underground drip irrigation valve assembly is housed within a standard valve box with cover set flush to the finish grade and top of mulch. The system connects to a mainline pipe via PVC schedule 40 fittings, a tee or ell, and PVC schedule 80 nipples leading up to a drip remote control valve and a pressure regulating quick check basket filter. Waterproof connections join a thirty-inch linear length of coiled wire to an ID tag. The entire assembly rests upon a three-inch minimum depth of three-quarter-inch washed gravel bed before transitioning to the lateral pipe.

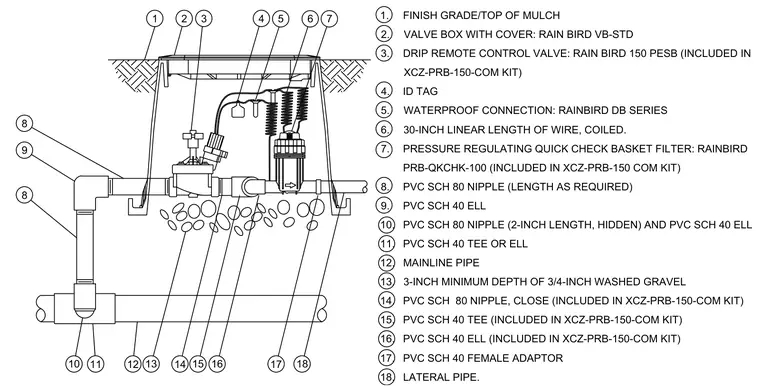

6 5 4 3 2 1 7 8 9 8 10 11 13 12 14 15 16 17 18 1. FINISH GRADE/TOP OF MULCH 2. VALVE BOX WITH COVER: RAIN BIRD VB-STD 3. DRIP REMOTE CONTROL VALVE: RAIN BIRD 150 PESB (INCLUDED IN XCZ-PRB-150-COM KIT) 4. ID TAG 5. WATERPROOF CONNECTION: RAINBIRD DB SERIES 6. 30-INCH LINEAR LENGTH OF WIRE, COILED. 7. PRESSURE REGULATING QUICK CHECK BASKET FILTER: RAINBIRD PRB-QKCHK-100 (INCLUDED IN XCZ-PRB-150 COM KIT) 8. PVC SCH 80 NIPPLE (LENGTH AS REQUIRED) 9. PVC SCH 40 ELL 10. PVC SCH 80 NIPPLE (2-INCH LENGTH, HIDDEN) AND PVC SCH 40 ELL 11. PVC SCH 40 TEE OR ELL 12. MAINLINE PIPE 13. 3-INCH MINIMUM DEPTH OF 3/4-INCH WASHED GRAVEL 14. PVC SCH 80 NIPPLE, CLOSE (INCLUDED IN XCZ-PRB-150-COM KIT) 15. PVC SCH 40 TEE (INCLUDED IN XCZ-PRB-150-COM KIT) 16. PVC SCH 40 ELL (INCLUDED IN XCZ-PRB-150-COM KIT) 17. PVC SCH 40 FEMALE ADAPTOR 18. LATERAL PIPE.
