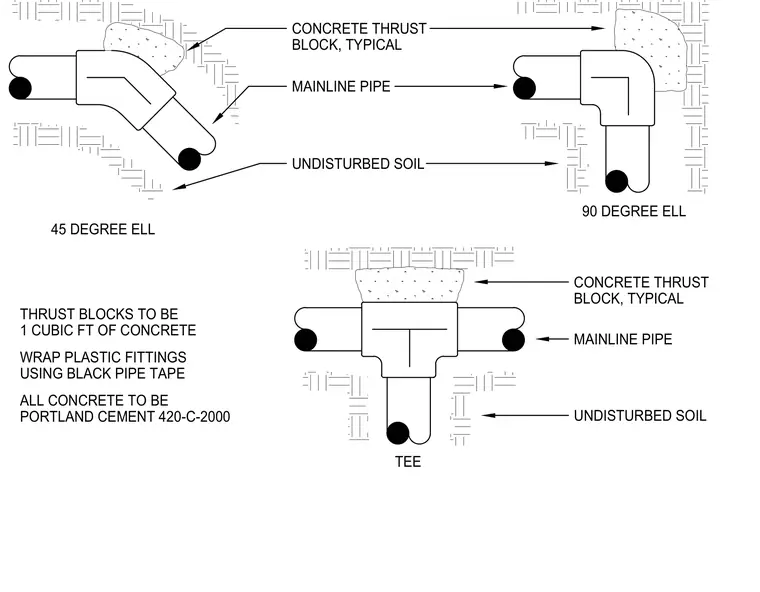

Thrust blocks of one cubic foot of portland cement concrete bear against undisturbed soil at forty-five degree and ninety-degree elbows and tees in mainline piping. Plastic fittings are wrapped with black pipe tape prior to concrete placement. All concrete mix conforms to standard specification 420-C-2000.
45 DEGREE ELL USING BLACK PIPE TAPE WRAP PLASTIC FITTINGS 1 CUBIC FT OF CONCRETE THRUST BLOCKS TO BE PORTLAND CEMENT 420-C-2000 ALL CONCRETE TO BE TEE UNDISTURBED SOIL CONCRETE THRUST UNDISTURBED SOIL MAINLINE PIPE BLOCK, TYPICAL 90 DEGREE ELL MAINLINE PIPE BLOCK, TYPICAL CONCRETE THRUST
