Terrace Seatwall and Brick Paving Section

Materials

Elements

Walls Drainage Site / Paving Connections / Plates

About this detail

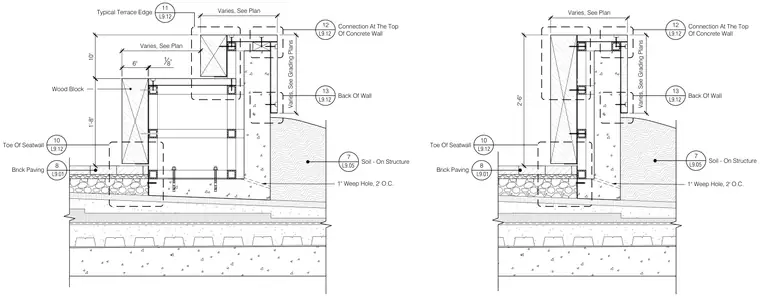

This terrace wall assembly features a concrete seatwall supported by a structural concrete slab and foundation with integrated soil on structure. A wood block seat measuring one foot eight inches high is anchored to the face of the concrete wall, resting above brick paving set on a drainage layer. One-inch weep holes are spaced at two feet on center through the concrete base. The top of the concrete wall connects to adjacent conditions with dimensions varying per plan.
