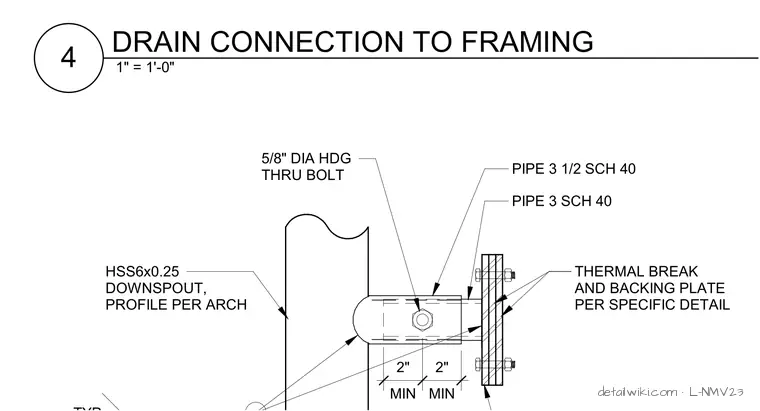

A downspout constructed from an HSS6x0.25 member with a profile per architecture connects to the structural framing using a nested pipe assembly. The assembly consists of a 3-inch Schedule 40 pipe sleeve inside a 3-and-a-half-inch Schedule 40 pipe, secured with a 5/8-inch diameter hot-dip galvanized through-bolt. A thermal break and backing plate detailed separately are sandwiched between the mounting plate and framing, with a minimum 2-inch clearance noted on both sides.
THERMAL BREAK AND BACKING PLATE PER SPECIFIC DETAIL MIN 2" MIN 2" PIPE 3 SCH 40 PIPE 3 1/2 SCH 40 HSS6x0.25 DOWNSPOUT, PROFILE PER ARCH 5/8" DIA HDG THRU BOLT 1" = 1'-0" 4 DRAIN CONNECTION TO FRAMING
