About this detail

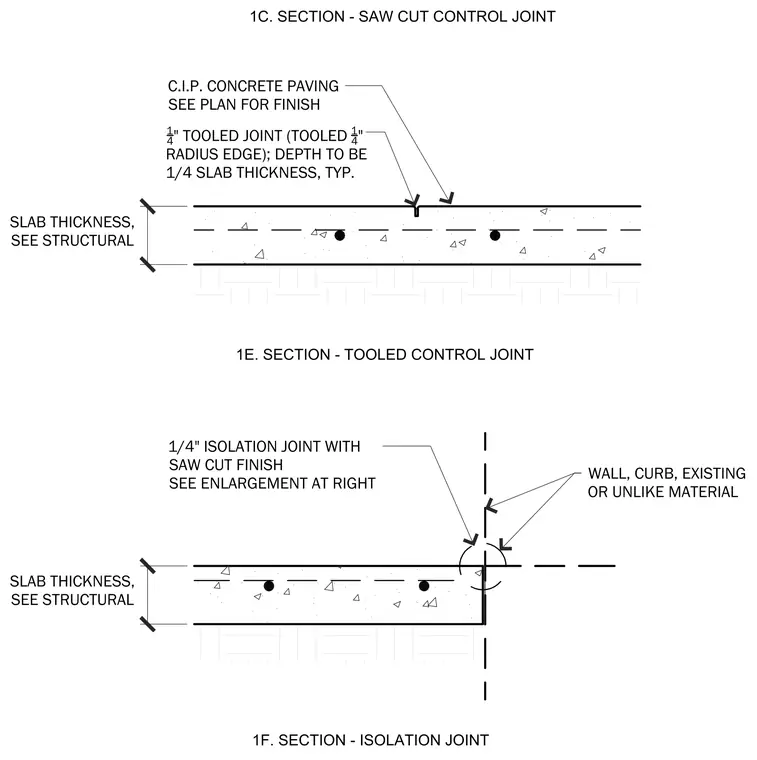

Cast-in-place concrete paving rests on a prepared subgrade with a slab thickness sized per structural drawings. A tooled control joint features a one-quarter-inch width with a one-quarter-inch radius edge, extending to a depth of one-quarter of the slab thickness typically. An isolation joint with a saw-cut finish separates the concrete slab from adjacent walls, curbs, existing construction, or unlike materials.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
