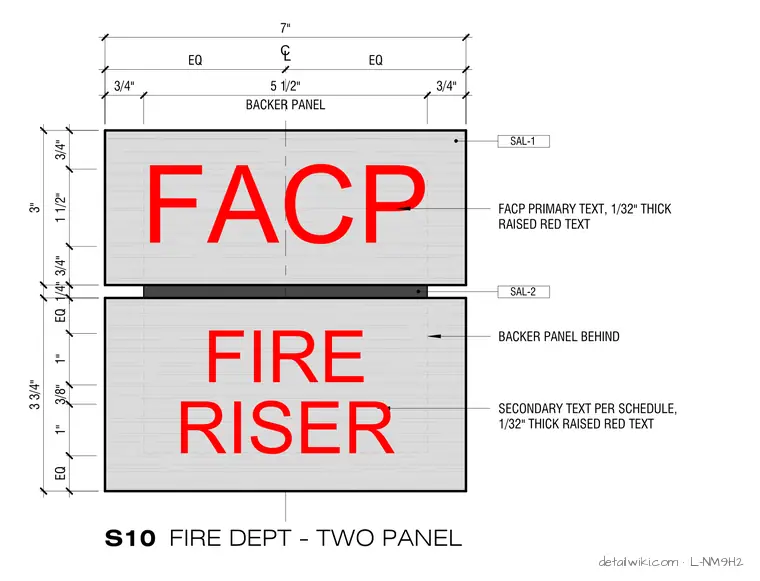

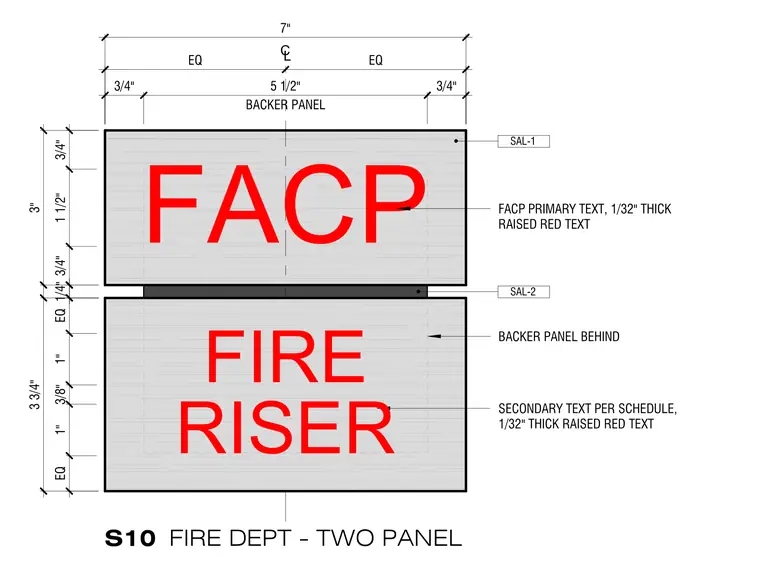

This two-panel sign assembly features an upper FACP panel and a lower fire riser panel mounted on a backer panel. The upper panel measures seven inches wide by three inches high with three-quarter-inch margins and features one-and-a-half-inch primary raised red text. The lower panel measures three and three-quarter inches high with secondary text per schedule and is separated from the upper panel by a one-quarter-inch gap. A backer panel sits behind both signs, secured with designated dimensions and spacing.
3" 3/4" 1 1/2" 3/4" EQ EQ CL 7" FACP FACP PRIMARY TEXT, 1/32" THICK RAISED RED TEXT SAL-1 BACKER PANEL BEHIND 3/4" BACKER PANEL 5 1/2" 3/4" SECONDARY TEXT PER SCHEDULE, 1/32" THICK RAISED RED TEXT FIRE RISER EQ 1" 3/8" 1" EQ 3 3/4" 1/4" SAL-2 FIRE DEPT - TWO PANEL S10
