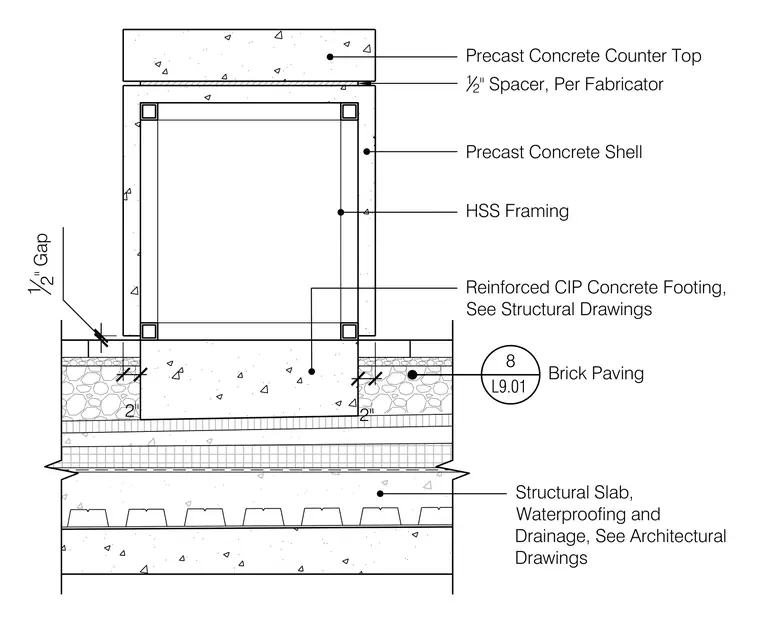

A precast concrete counter top rests on a one-half-inch spacer per the fabricator above a precast concrete shell enclosing a hollow structural section steel framing. The entire assembly bears on a reinforced cast-in-place concrete footing detailed in the structural drawings, extending through brick paving and a structural slab with waterproofing and drainage detailed in the architectural drawings. A one-half-inch gap is provided adjacent to the base assembly.
Precast Concrete Counter Top Precast Concrete Shell HSS Framing 12 " Spacer, Per Fabricator Reinforced CIP Concrete Footing, See Structural Drawings 8 L9.01 Brick Paving Structural Slab, Waterproofing and Drainage, See Architectural Drawings 12" Gap 2" 2"
