A heavy-duty extruded anodized aluminum track is suspended from the overhead construction using a ceiling clip with a threaded stud and nut secured to the suspended ceiling. Inside the track, a one-piece nylon roller wheel assembly carries a twelve-gauge steel carrier hook with a corrosion-resistant finish spaced at four inches on center. The hook supports the curtain assembly below.

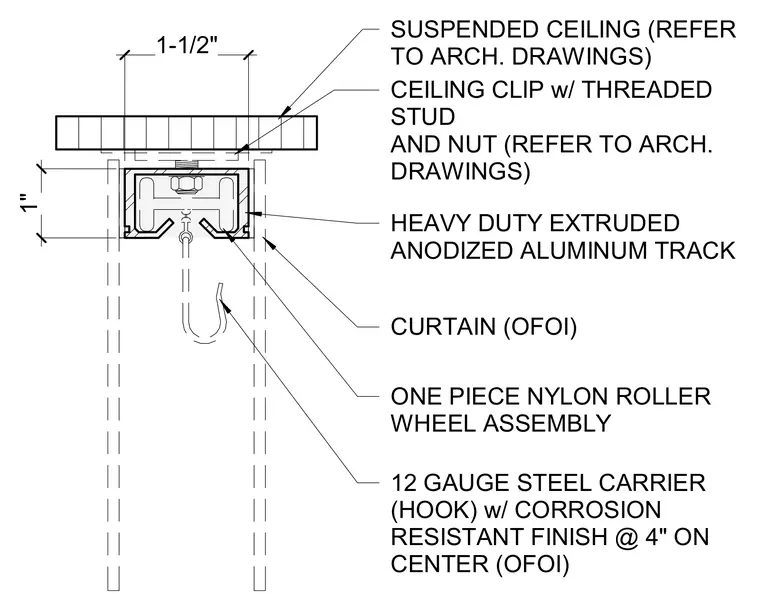

1-1/2" 1" ONE PIECE NYLON ROLLER WHEEL ASSEMBLY 12 GAUGE STEEL CARRIER (HOOK) w/ CORROSION RESISTANT FINISH @ 4" ON CENTER (OFOI) CURTAIN (OFOI) CEILING CLIP w/ THREADED STUD AND NUT (REFER TO ARCH. DRAWINGS) SUSPENDED CEILING (REFER TO ARCH. DRAWINGS) HEAVY DUTY EXTRUDED ANODIZED ALUMINUM TRACK
