Landscape · L-NH7JJ

Mortar Set Brick Paver Detail at Lobby Entry

Materials

Concrete Masonry / CMU Brick

Elements

Floors / Slabs Arches Expansion / Control Joints Entrances

Connections

Expansion / Slip Connection

About this detail

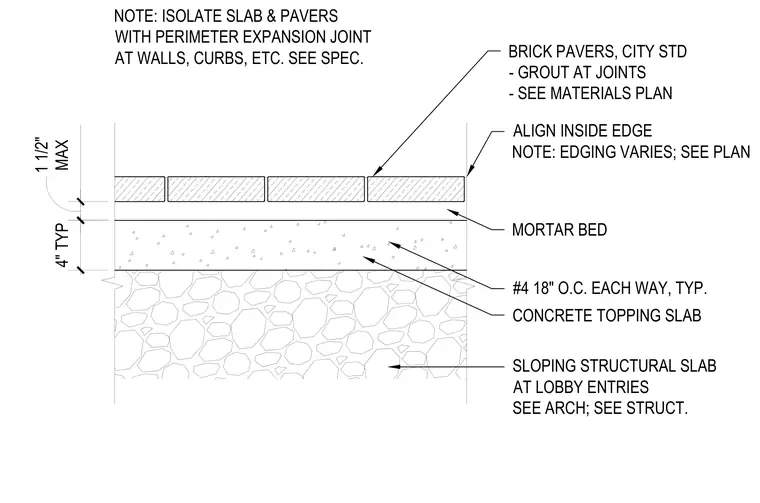

A mortar-set brick paver assembly is supported by a concrete topping slab and a sloping structural slab at lobby entries. City standard brick pavers feature grouted joints and sit within a one-and-a-half-inch maximum mortar bed. Below the mortar bed, a four-inch typical concrete topping slab is reinforced with number four reinforcing bars spaced at eighteen inches on center each way. The assembly rests on a sloping structural slab, with perimeter expansion joints isolating the slab and pavers at walls and curbs.
