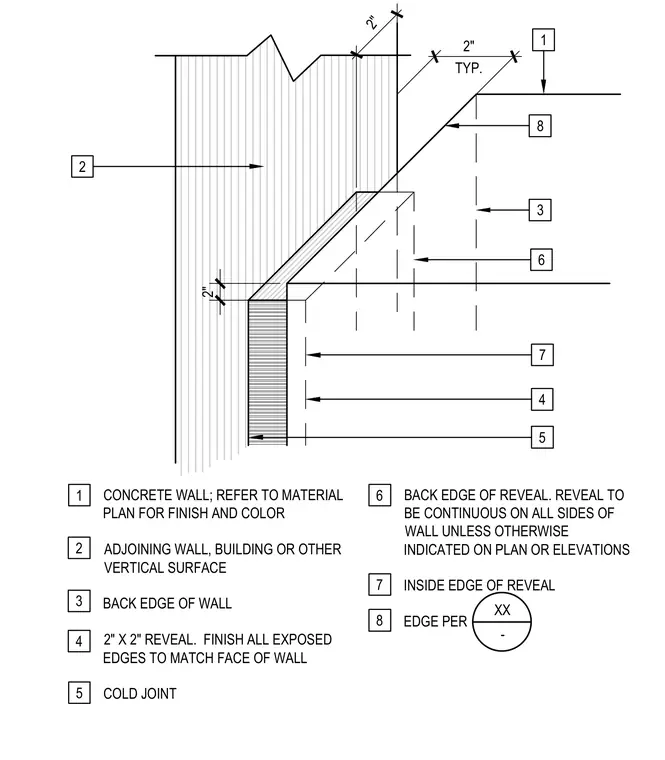

A two-by-two-inch continuous reveal is formed at the end of the concrete wall using a cold joint, with all exposed edges finished to match the face of the wall. The wall interfaces with an adjoining wall, building, or other vertical surface, maintaining a two-inch dimension from the back edge of the wall to the inside edge of the reveal. The reveal remains continuous on all sides unless otherwise indicated on the plan or elevations.
TYP. 2" 2" 6 7 8 5 4 7 6 3 8 1 2 5 4 3 2 1 CONCRETE WALL; REFER TO MATERIAL PLAN FOR FINISH AND COLOR ADJOINING WALL, BUILDING OR OTHER VERTICAL SURFACE BACK EDGE OF WALL 2" X 2" REVEAL. FINISH ALL EXPOSED EDGES TO MATCH FACE OF WALL COLD JOINT BACK EDGE OF REVEAL. REVEAL TO BE CONTINUOUS ON ALL SIDES OF WALL UNLESS OTHERWISE INDICATED ON PLAN OR ELEVATIONS INSIDE EDGE OF REVEAL EDGE PER 2" XX -
