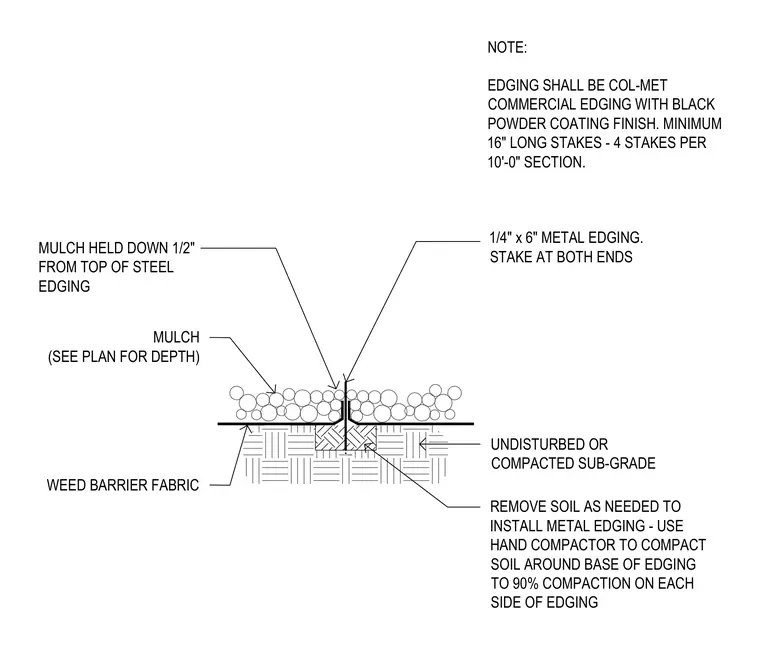

The assembly consists of a quarter-inch by six-inch commercial steel edging with a black powder coating finish anchored by minimum sixteen-inch long stakes at a rate of four stakes per ten-foot section. The edging is set into undisturbed or compacted sub-grade where soil is removed as needed and compacted to ninety percent compaction on each side using a hand compactor. Weed barrier fabric underlies the mulch bed while mulch is held down one-half inch from the top of the steel edging.
1/4" x 6" METAL EDGING. STAKE AT BOTH ENDS WEED BARRIER FABRIC NOTE: EDGING SHALL BE COL-MET COMMERCIAL EDGING WITH BLACK POWDER COATING FINISH. MINIMUM 16" LONG STAKES - 4 STAKES PER 10'-0" SECTION. MULCH HELD DOWN 1/2" FROM TOP OF STEEL EDGING UNDISTURBED OR COMPACTED SUB-GRADE REMOVE SOIL AS NEEDED TO INSTALL METAL EDGING - USE HAND COMPACTOR TO COMPACT SOIL AROUND BASE OF EDGING TO 90% COMPACTION ON EACH SIDE OF EDGING MULCH (SEE PLAN FOR DEPTH)
