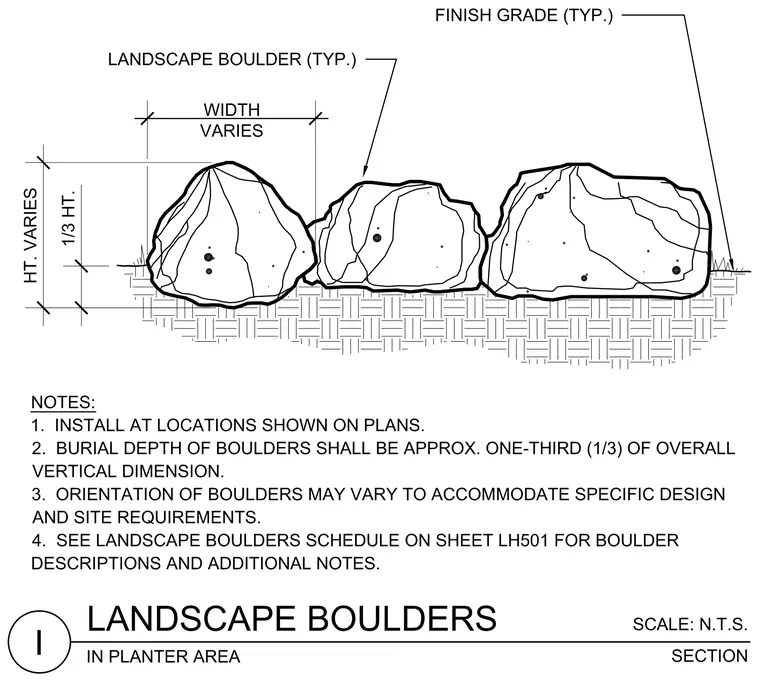

Landscape boulders are installed at locations shown on plans with a burial depth of approximately one-third of the overall vertical dimension. The height and width of the boulders vary, and their orientation can be adjusted to accommodate specific design and site requirements. Finish grade is maintained at typical locations around the boulders.
