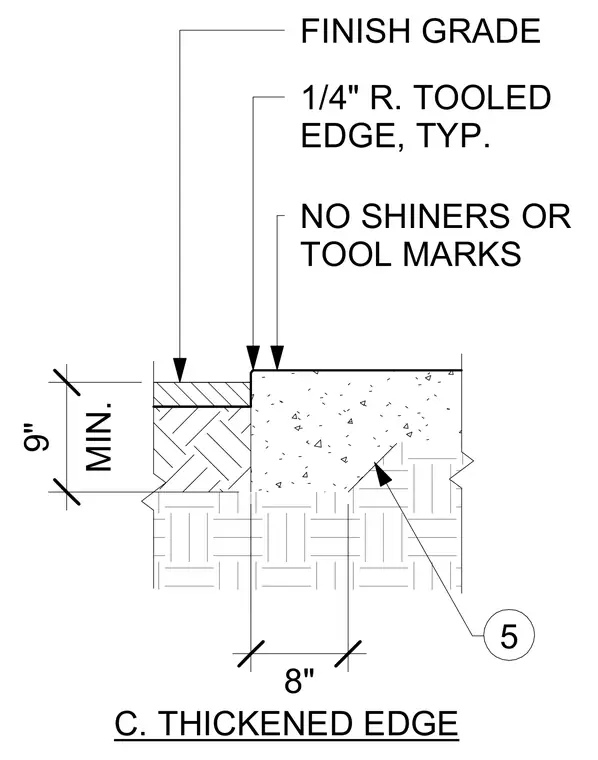

This concrete thickened edge detail features an eight-inch concrete pour with a one-quarter-inch rounded tooled edge. The top of the concrete requires a clean finish with no shiners or tool marks. Adjacent finish grade is maintained at a minimum of nine inches.
FINISH GRADE MIN. 9" 8" 5 1/4" R. TOOLED EDGE, TYP. NO SHINERS OR TOOL MARKS C. THICKENED EDGE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
