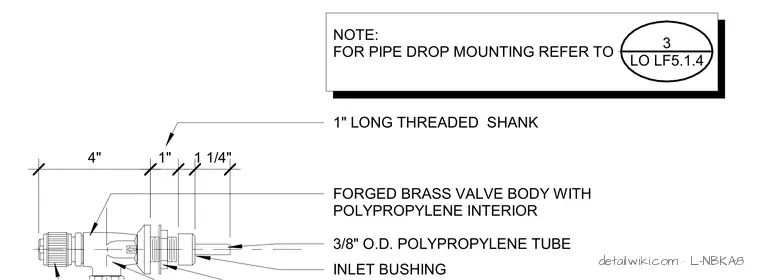

The drawing shows a detailed cross-section and components of a pipe drop connection, highlighting a 1-inch long threaded shank, a forged brass valve body with polypropylene interior, an inlet bushing, and a 3/8" outer diameter polypropylene tube. Dimensional callouts indicate lengths such as 4 inches, 1 inch, and 1-1/4 inches for the assembly parts. A reference note points to mounting details on sheet LO LF5.4.
Text on the drawing
FORGED BRASS VALVE BODY WITH POLYPROPYLENE INTERIOR INLET BUSHING 3/8" O.D. POLYPROPYLENE TUBE NOTE: FOR PIPE DROP MOUNTING REFER TO LO LF5.1.4 3 1" LONG THREADED SHANK 4" 1" 1 1/4"
