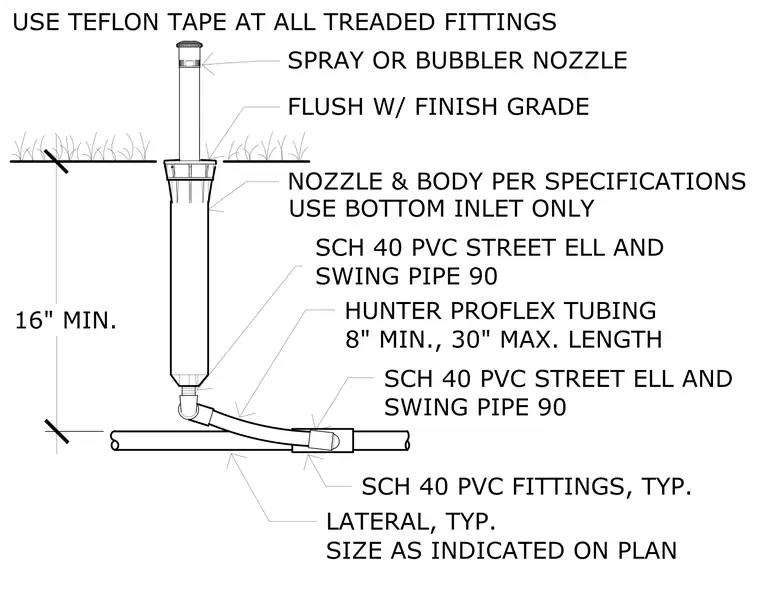

This assembly connects a spray or bubbler nozzle to the mainline lateral pipe using schedule forty PVC fittings with a bottom inlet only. A Hunter ProFlex tubing swing pipe measuring between eight inches minimum and thirty inches maximum length connects to schedule forty PVC street elbows at each end. Teflon tape is required at all threaded fittings, and the pop-up head is set flush with the finish grade with a sixteen inch minimum depth to the lateral pipe.
FLUSH W/ FINISH GRADE 16" MIN. USE BOTTOM INLET ONLY LATERAL, TYP. SCH 40 PVC FITTINGS, TYP. NOZZLE & BODY PER SPECIFICATIONS SIZE AS INDICATED ON PLAN SPRAY OR BUBBLER NOZZLE HUNTER PROFLEX TUBING 8" MIN., 30" MAX. LENGTH SCH 40 PVC STREET ELL AND SWING PIPE 90 SCH 40 PVC STREET ELL AND SWING PIPE 90 USE TEFLON TAPE AT ALL TREADED FITTINGS
