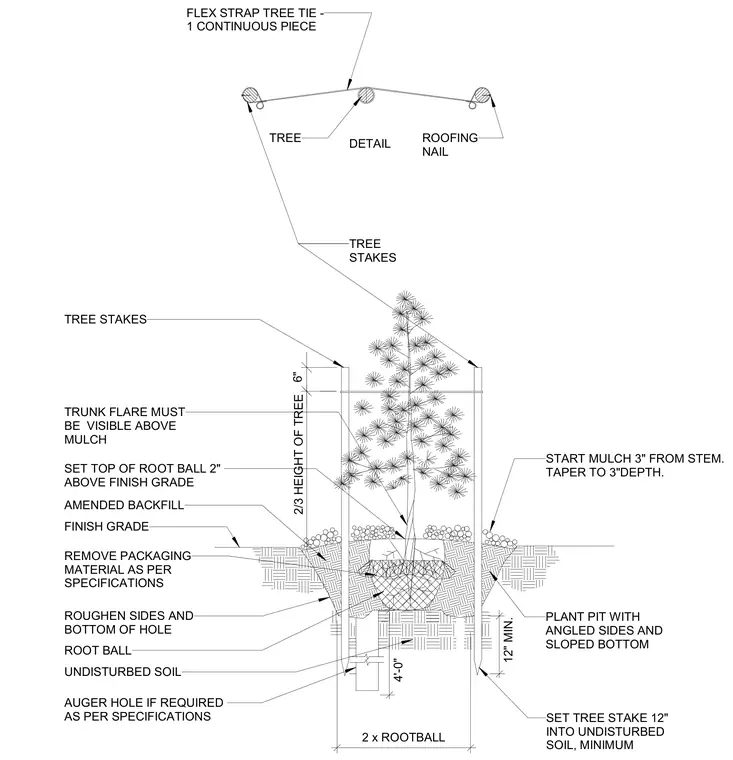

The tree is set with the top of the root ball positioned two inches above the finish grade, ensuring the trunk flare remains visible above the mulch. The plant pit features angled sides and a sloped bottom with roughened surfaces over undisturbed soil, surrounded by amended backfill. Tree stakes extend four feet high and are driven a minimum of twelve inches into undisturbed soil, secured at two-thirds the height of the tree using a continuous flexible strap tie fastened with roofing nails. Mulch starts three inches away from the stem and tapers to a three-inch depth.
FLEX STRAP TREE TIE - 1 CONTINUOUS PIECE TREE STAKES TRUNK FLARE MUST BE VISIBLE ABOVE MULCH SET TOP OF ROOT BALL 2" ABOVE FINISH GRADE AMENDED BACKFILL FINISH GRADE ROUGHEN SIDES AND BOTTOM OF HOLE ROOT BALL UNDISTURBED SOIL TREE STAKES ROOFING NAIL TREE DETAIL START MULCH 3" FROM STEM. TAPER TO 3"DEPTH. PLANT PIT WITH ANGLED SIDES AND SLOPED BOTTOM SET TREE STAKE 12" INTO UNDISTURBED SOIL, MINIMUM REMOVE PACKAGING MATERIAL AS PER SPECIFICATIONS 2/3 HEIGHT OF TREE 6" 4'-0" 12" MIN. 2 x ROOTBALL AUGER HOLE IF REQUIRED AS PER SPECIFICATIONS
