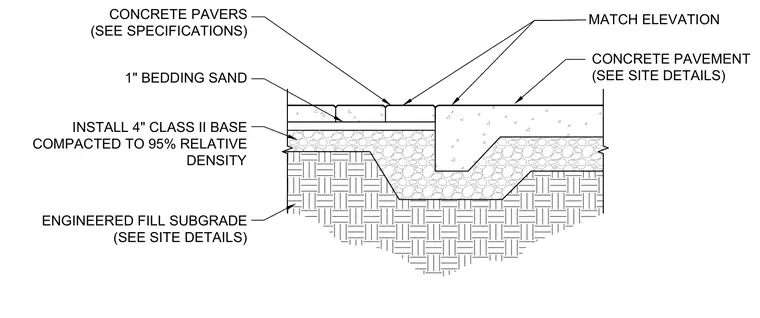

Concrete pavers are laid over a one-inch bedding sand layer supported by a four-inch Class II base compacted to ninety-five percent relative density. The base rests upon an engineered fill subgrade. An adjacent concrete pavement transitions flush to the paver assembly, matching elevations at the joint.
MATCH ELEVATION 1" BEDDING SAND CONCRETE PAVERS (SEE SPECIFICATIONS) ENGINEERED FILL SUBGRADE (SEE SITE DETAILS) CONCRETE PAVEMENT (SEE SITE DETAILS) INSTALL 4" CLASS II BASE COMPACTED TO 95% RELATIVE DENSITY
