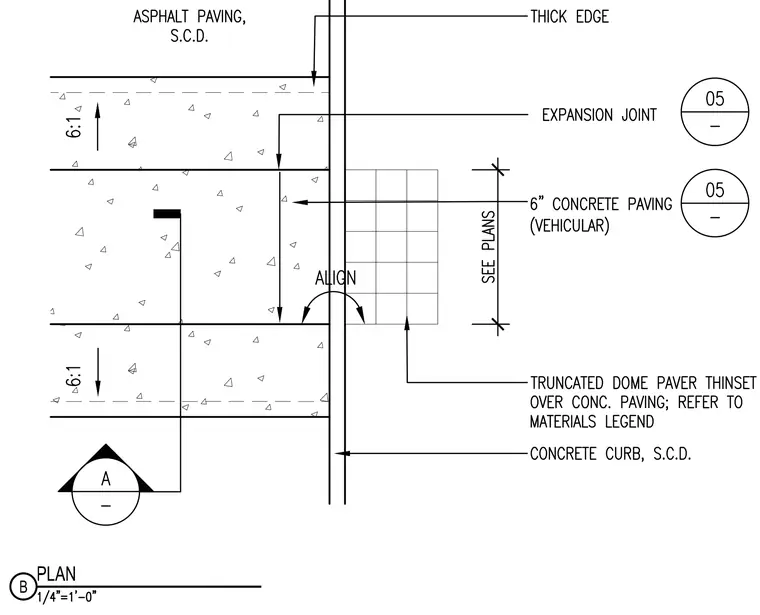

A paved vehicular surface transition features asphalt paving adjacent to six-inch concrete paving, separated by an expansion joint. A concrete curb bounds the assembly, aligning with a thick edge condition on the asphalt side. Truncated dome pavers on a thinset bed sit over the concrete paving as indicated by the materials legend. The layout includes specific slope indicators and alignment markers referencing other sheets in the drawing set.
