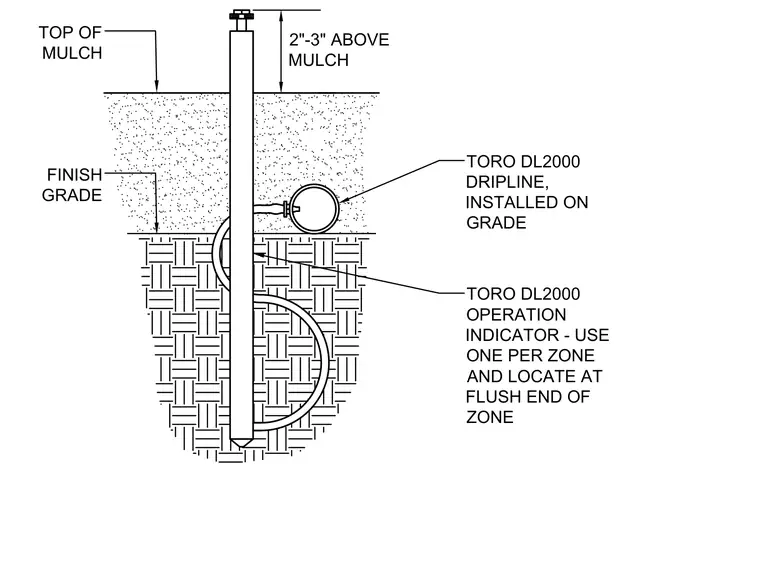

The Toro DL2000 operation indicator is installed on grade and positioned two to three inches above the mulch finish grade. One indicator is used per zone and located at the flush end of the zone, connected to the Toro DL2000 dripline installed on grade.
2"-3" ABOVE MULCH FINISH GRADE TORO DL2000 DRIPLINE, INSTALLED ON GRADE TORO DL2000 OPERATION INDICATOR - USE ONE PER ZONE AND LOCATE AT FLUSH END OF ZONE TOP OF MULCH
