Point of connection details for recycled cold water and domestic cold water services indicate sizes and loads to be determined. Reference notes direct coordination with civil utility plans for continuation and location of the backflow preventer. Additional notes are provided for reference only.

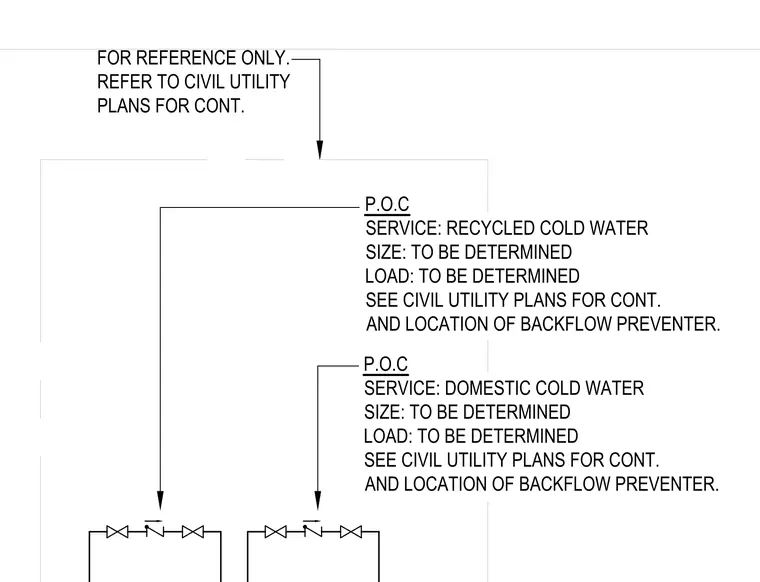

P.O.C SERVICE: DOMESTIC COLD WATER SIZE: TO BE DETERMINED LOAD: TO BE DETERMINED SEE CIVIL UTILITY PLANS FOR CONT. AND LOCATION OF BACKFLOW PREVENTER. FOR REFERENCE ONLY. REFER TO CIVIL UTILITY PLANS FOR CONT. P.O.C SERVICE: RECYCLED COLD WATER SIZE: TO BE DETERMINED LOAD: TO BE DETERMINED SEE CIVIL UTILITY PLANS FOR CONT. AND LOCATION OF BACKFLOW PREVENTER.
