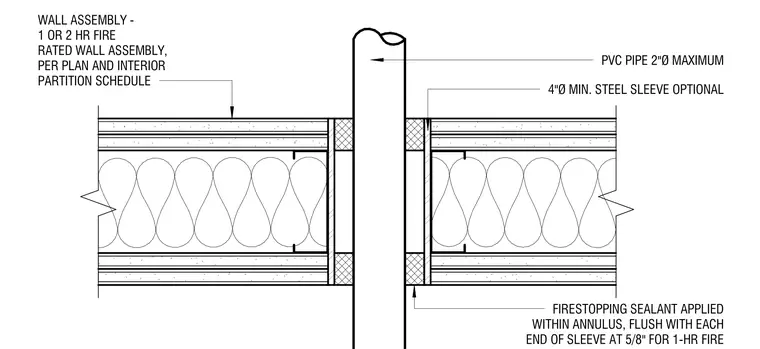

L-N6BA6 — 1-Hr/2-Hr Firestopping @ Pipe Penetration Sm

Landscape · L-N6BA6

1-Hr/2-Hr Firestopping @ Pipe Penetration Sm

Units: imperial
Sheet: LO-A9.6.2
Discipline: Landscape

Materials

Elements

Floors / Slabs Partitions Roof / Floor Openings Walls

Text on the drawing

WALL ASSEMBLY - 1 OR 2 HR FIRE RATED WALL ASSEMBLY, PER PLAN AND INTERIOR PARTITION SCHEDULE PVC PIPE 2"Ø MAXIMUM FIRESTOPPING SEALANT APPLIED WITHIN ANNULUS, FLUSH WITH EACH END OF SLEEVE AT 5/8" FOR 1-HR FIRE 4"Ø MIN. STEEL SLEEVE OPTIONAL

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
