Landscape · L-N6999

Drip Irrigation Perimeter Laterals Layout Plan

Elements

About this detail

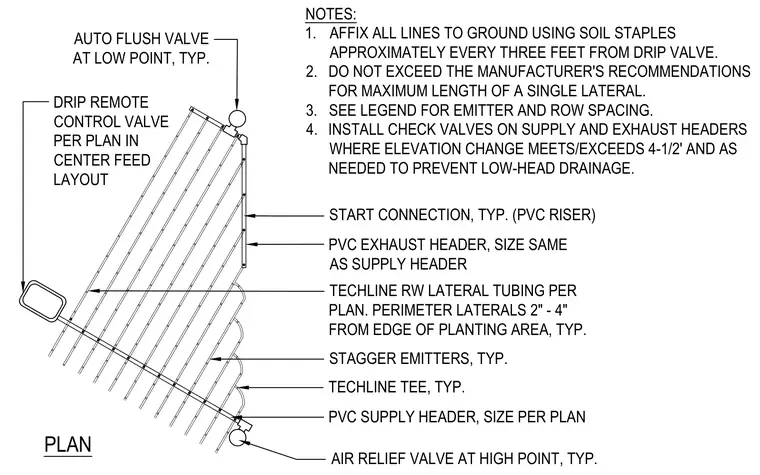

A drip irrigation zone layout features Techline RW lateral tubing set two to four inches from the edge of the planting area. A PVC supply header sized per plan feeds the system through a center-fed drip remote control valve, accompanied by an air relief valve at the high point and an auto flush valve at the low point. PVC riser start connections transition to the lateral lines, which use Techline tees and staggered emitters. Soil staples affix all lines to the ground approximately every three feet from the drip valve, and check valves are installed on headers where elevation changes meet or exceed four and a half feet.
