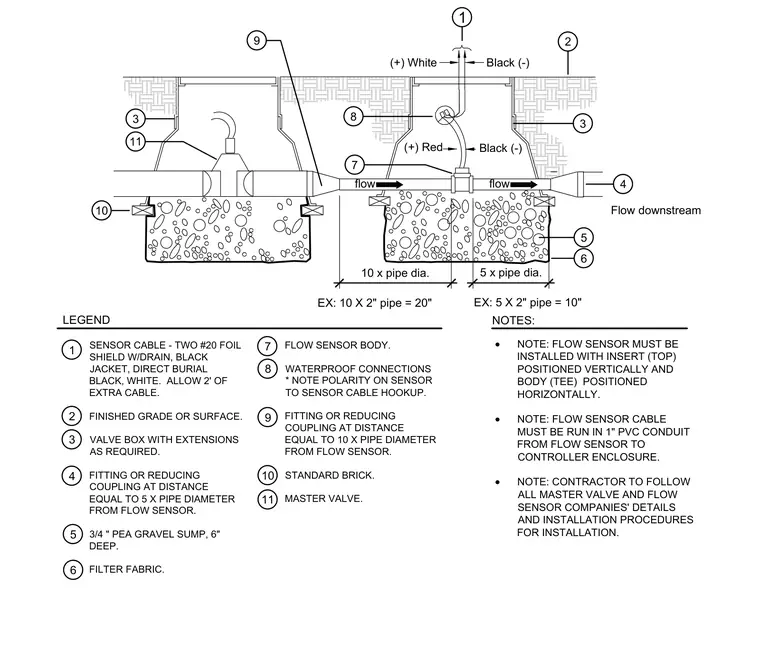

An underground flow sensor and master valve installed within valve boxes featuring extensions and standard brick supports over a six-inch deep three-quarter-inch pea gravel sump wrapped in filter fabric. The flow sensor body is plumbed with upstream and downstream fittings or reducing couplings placed at distances equal to ten times and five times the pipe diameter respectively. Waterproof connections join the sensor cable to the controller wiring while maintaining proper polarity and allowing two feet of extra cable length. The flow sensor must be installed with its insert positioned vertically and its tee body horizontally with the sensor cable run in a one-inch PVC conduit to the controller enclosure.
flow (+) Red (+) White Black (-) Black (-) EX: 5 X 2" pipe = 10" EX: 10 X 2" pipe = 20" Flow downstream flow LEGEND SENSOR CABLE - TWO #20 FOIL SHIELD W/DRAIN, BLACK JACKET, DIRECT BURIAL BLACK, WHITE. ALLOW 2' OF EXTRA CABLE. FINISHED GRADE OR SURFACE. VALVE BOX WITH EXTENSIONS AS REQUIRED. FITTING OR REDUCING COUPLING AT DISTANCE EQUAL TO 5 X PIPE DIAMETER FROM FLOW SENSOR. 3/4 " PEA GRAVEL SUMP, 6" DEEP. FILTER FABRIC. FLOW SENSOR BODY. WATERPROOF CONNECTIONS * NOTE POLARITY ON SENSOR TO SENSOR CABLE HOOKUP. FITTING OR REDUCING COUPLING AT DISTANCE EQUAL TO 10 X PIPE DIAMETER FROM FLOW SENSOR. STANDARD BRICK. MASTER VALVE. 1 NOTES: 10 x pipe dia. 5 x pipe dia. 1 2 3 4 5 6 7 8 9 10 2 3 4 5 6 7 8 10 11 11 3 9 · NOTE: FLOW SENSOR MUST BE INSTALLED WITH INSERT (TOP) POSITIONED VERTICALLY AND BODY (TEE) POSITIONED HORIZONTALLY. · NOTE: FLOW SENSOR CABLE MUST BE RUN IN 1" PVC CONDUIT FROM FLOW SENSOR TO CONTROLLER ENCLOSURE. · NOTE: CONTRACTOR TO FOLLOW ALL MASTER VALVE AND FLOW SENSOR COMPANIES' DETAILS AND INSTALLATION PROCEDURES FOR INSTALLATION.
