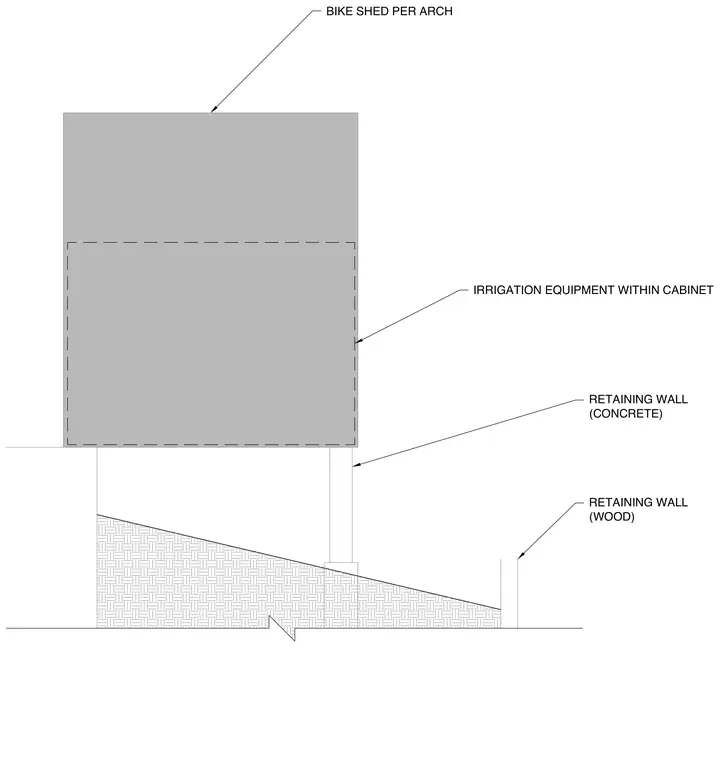

An irrigation equipment cabinet sits within a designated enclosure adjacent to a bike shed structure. The assembly is supported by a concrete retaining wall that steps down across a sloped grade. A wood retaining wall borders the lower portion of the site below the concrete structure. Bike shed construction is coordinated per architectural drawings.
BIKE SHED PER ARCH RETAINING WALL (WOOD) RETAINING WALL (CONCRETE) IRRIGATION EQUIPMENT WITHIN CABINET
