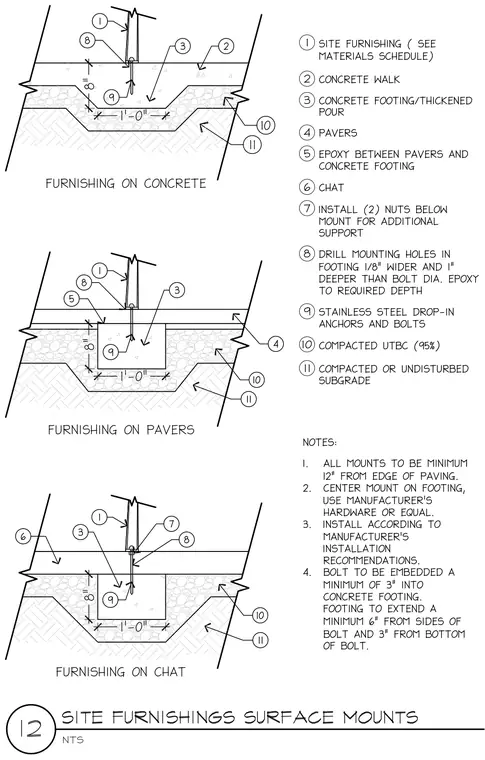

Site furnishings are anchored to concrete walks, pavers, or chat over compacted UTBC and subgrade using stainless steel drop-in anchors and bolts. The mounting hardware is secured into a concrete footing or thickened pour measuring twelve inches wide and eight inches deep. Two nuts are installed below the mount for additional support on chat installations. Epoxy is applied between pavers and the concrete footing where applicable. Mounting holes are drilled one-eighth inch wider and one inch deeper than the bolt diameter and filled with epoxy to the required depth.
