Landscape · L-MX9CE

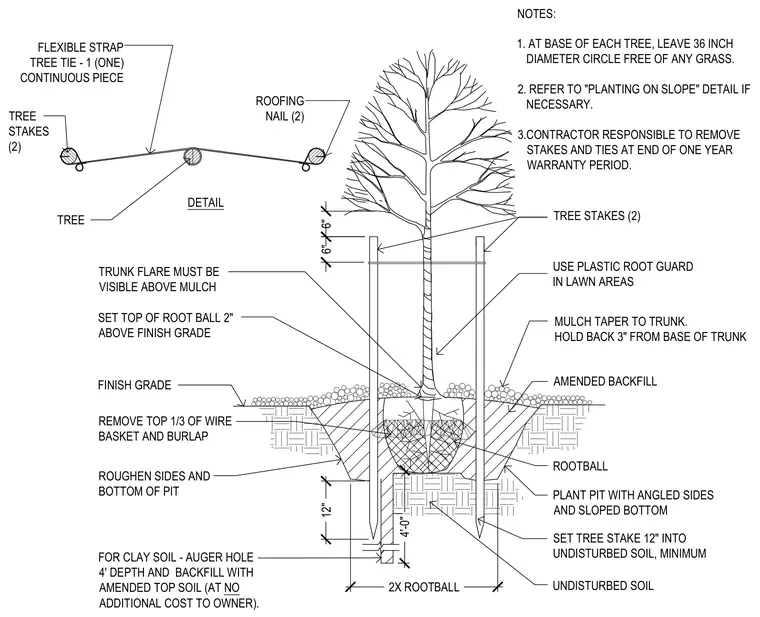

Deciduous Tree Planting Detail

Materials

Elements

About this detail

Set the top of the root ball two inches above the finish grade with the trunk flare visible above the mulch. The plant pit features angled sides and a sloped bottom, with roughened sides and bottom for proper root establishment. For clay soil conditions, auger a hole four feet deep and backfill with amended topsoil. Remove the top one-third of the wire basket and burlap. Apply mulch tapered to the trunk, held back three inches from the base of the trunk, and use a plastic root guard in lawn areas. Secure the tree with two tree stakes driven twelve inches into undisturbed soil, minimum, using a continuous flexible tree tie secured with two roofing nails.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
