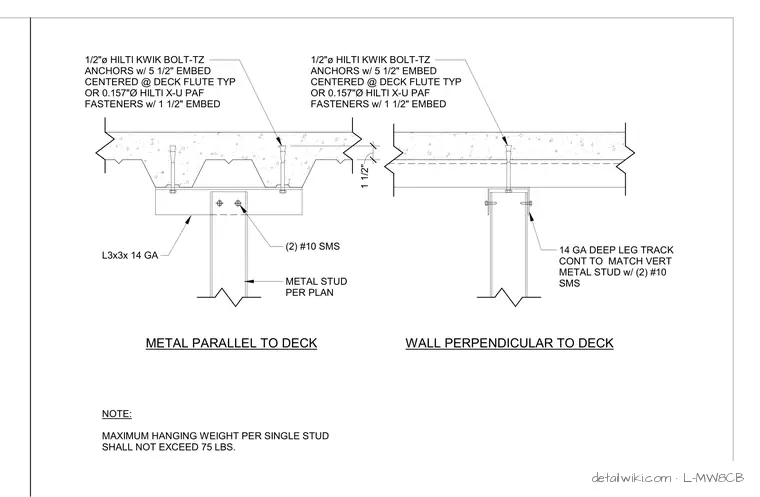

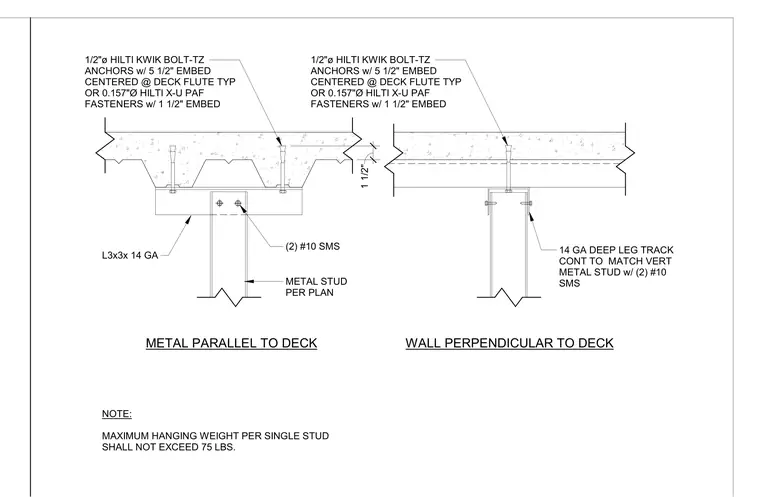

Cold-formed steel studs are suspended from an overhead concrete over metal deck assembly in two orientations, running either parallel or perpendicular to the deck flutes. The structural connection is made using either one-half inch diameter Hilti Kwik Bolt-TZ anchors with five and one-half inch embedment centered at the deck flute typically, or zero-point-one-five-seven inch diameter Hilti X-U powder-actuated fasteners with one and one-half inch embedment. For walls parallel to the deck, a three-by-three inch 14-gauge angle supports the vertical framing. For walls perpendicular to the deck, a continuous 14-gauge deep leg track matches the vertical metal stud and connects using two number 10 sheet metal screws. The maximum hanging weight per single stud is restricted to 75 pounds.
1/2"ø HILTI KWIK BOLT-TZ ANCHORS w/ 5 1/2" EMBED CENTERED @ DECK FLUTE TYP OR 0.157"Ø HILTI X-U PAF FASTENERS w/ 1 1/2" EMBED (2) #10 SMS METAL STUD PER PLAN L3x3x 14 GA 14 GA DEEP LEG TRACK CONT TO MATCH VERT METAL STUD w/ (2) #10 SMS METAL PARALLEL TO DECK WALL PERPENDICULAR TO DECK 1 1/2" 1/2"ø HILTI KWIK BOLT-TZ ANCHORS w/ 5 1/2" EMBED CENTERED @ DECK FLUTE TYP OR 0.157"Ø HILTI X-U PAF FASTENERS w/ 1 1/2" EMBED NOTE: MAXIMUM HANGING WEIGHT PER SINGLE STUD SHALL NOT EXCEED 75 LBS.
