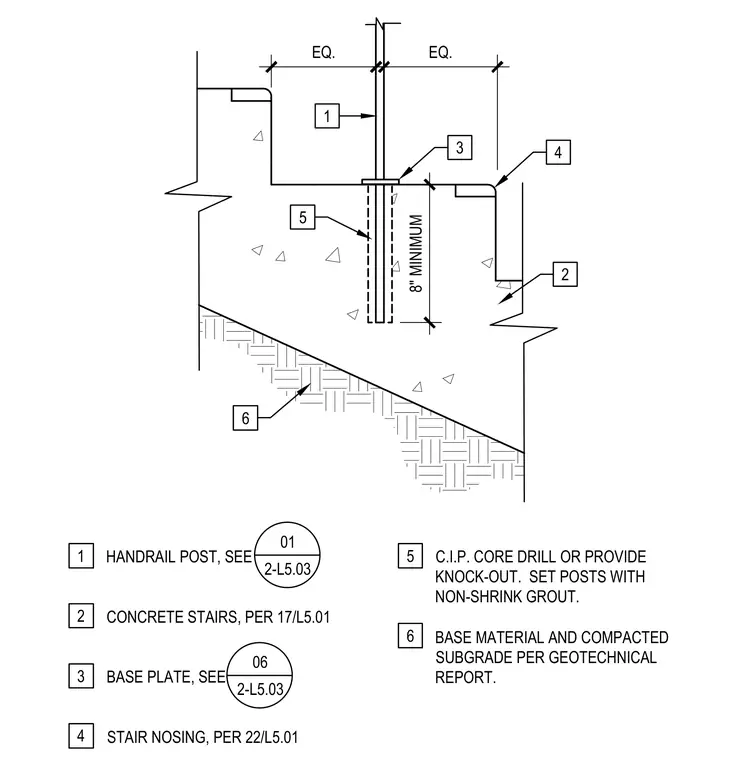

A handrail post sets into a cast-in-place concrete stair with an eight-inch minimum embedment depth. Core drill the concrete or provide a knock-out block-out during placement. Set the posts using non-shrink grout with an equal spacing layout. The base material and compacted subgrade are installed per the geotechnical report.
EQ. EQ. 1 2 3 4 5 6 1 2 3 4 5 6 8" MINIMUM 01 2-L5.03 06 2-L5.03 HANDRAIL POST, SEE CONCRETE STAIRS, PER 17/L5.01 BASE PLATE, SEE STAIR NOSING, PER 22/L5.01 C.I.P. CORE DRILL OR PROVIDE KNOCK-OUT. SET POSTS WITH NON-SHRINK GROUT. BASE MATERIAL AND COMPACTED SUBGRADE PER GEOTECHNICAL REPORT.
