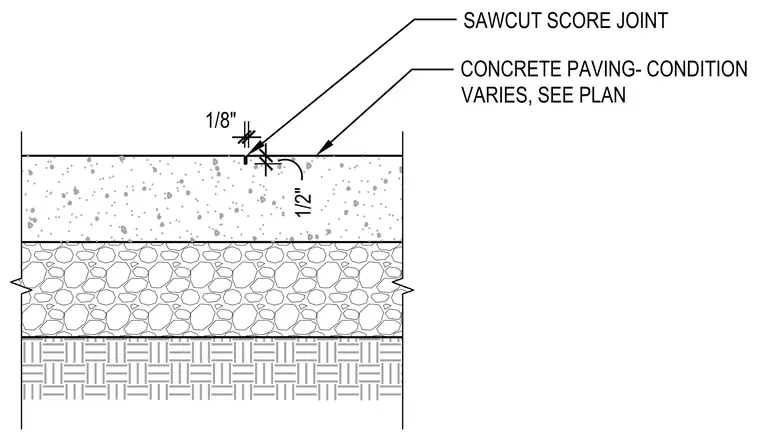

A sawcut score joint is formed in the concrete paving at a width of 1/8 inch and a depth of 1/2 inch to control cracking. The concrete slab rests on an aggregate base course and compacted subgrade with conditions varying per the site plan.
