About this detail

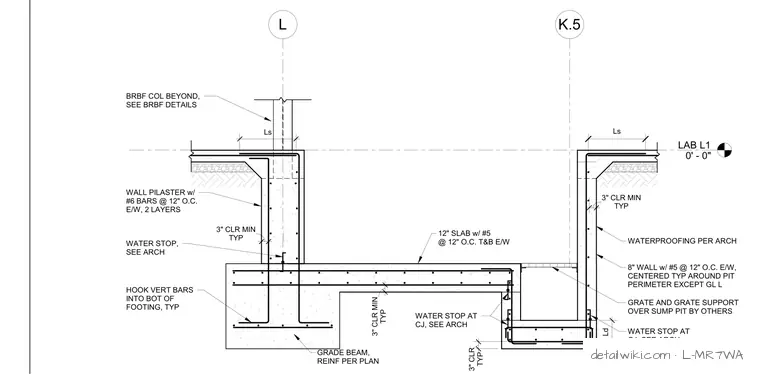

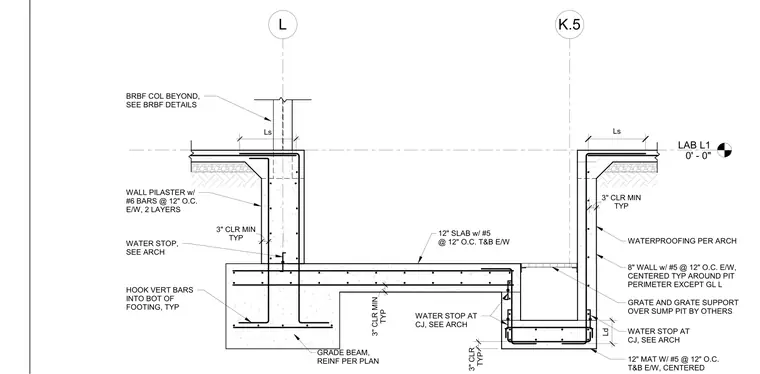

A twelve-inch reinforced concrete slab with number five bars at twelve inches on center top and bottom each way ties into concrete walls and a sump pit. The eight-inch pit walls feature number five bars at twelve inches on center each way centered typical around the perimeter except at grid line L, which includes a wall pilaster with number six bars at twelve inches on center each way in two layers. A twelve-inch mat slab at the sump pit uses number five bars at twelve inches on center top and bottom each way centered, with vertical bars hooked into the bottom of the footing. Grade beams are reinforced per plan with three-inch minimum clearance. Waterstops are provided at control joints per architectural drawings, along with waterproofing per architectural specifications and a grate and grate support over the sump pit by others. A buckling-restrained braced frame column appears beyond, with reference to buckling-restrained braced frame details.
