Landscape · L-MR74B

Drip Tubing Connection

Elements

About this detail

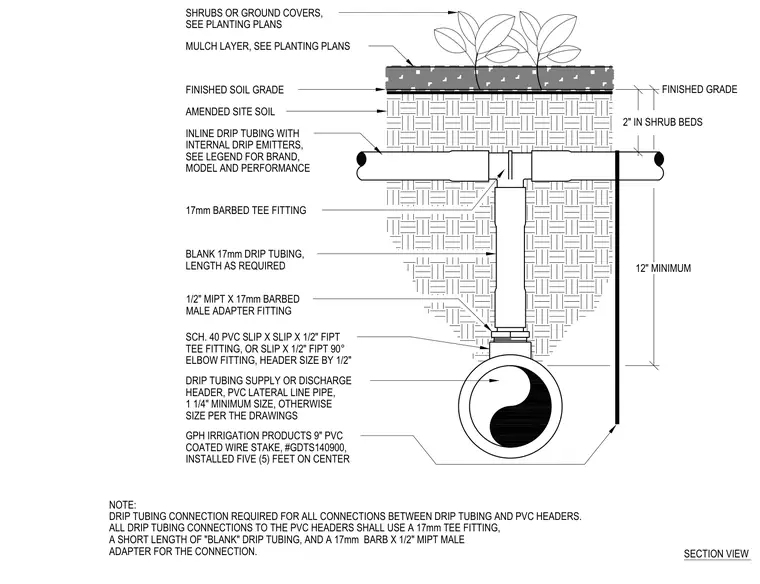

The connection between inline drip tubing and a Schedule 40 PVC lateral line header pipe of one and one-quarter inch minimum size. A PVC-coated wire stake holds the tubing system in place, installed at five feet on center within amended site soil beneath a mulch layer and shrubs or ground covers. The assembly connects using a Schedule 40 PVC slip by slip by one-half inch FIPT tee or elbow fitting tied to a one-half inch MIPT by seventeen millimeter barbed male adapter fitting. A short length of blank seventeen millimeter drip tubing and a seventeen millimeter barbed tee fitting bridge the connection to the main inline drip tubing with internal drip emitters.
