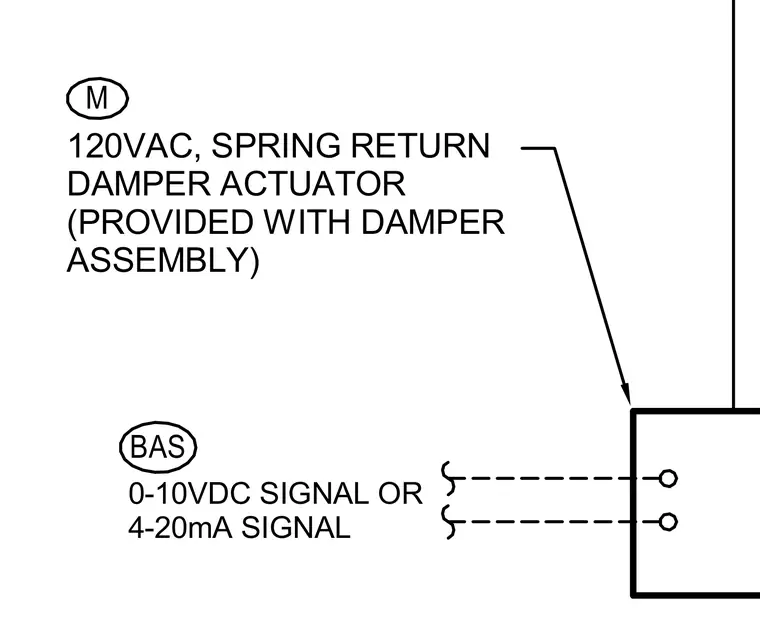

The assembly features a one hundred twenty-volt alternating current spring-return damper actuator provided with the damper assembly. Control signals are routed via building automation systems using either a zero to ten-volt direct current signal or a four to twenty-milliamp signal.
M BAS 120VAC, SPRING RETURN DAMPER ACTUATOR (PROVIDED WITH DAMPER ASSEMBLY) 0-10VDC SIGNAL OR 4-20mA SIGNAL
