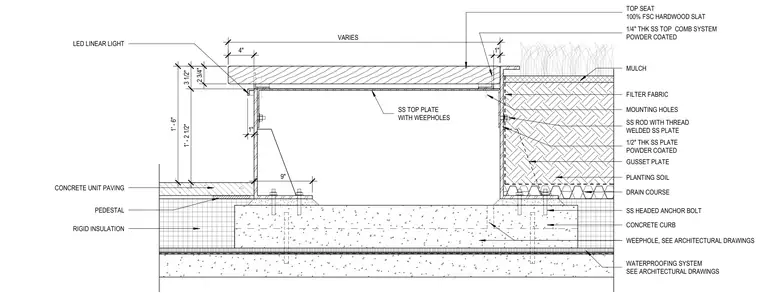

A concrete curb with an adjacent planter integrates a wood seating assembly mounted on stainless steel plates and gusset plates. The seat features a one-half-inch-thick powder-coated stainless steel plate supporting a one-hundred-percent Forest Stewardship Council certified hardwood slat with a one-quarter-inch-thick stainless steel top comb system and an integrated one-inch linear light. The supporting structure utilizes stainless steel headed anchor bolts embedded into the concrete curb, with a threaded stainless steel rod and welded stainless steel plate securing the assembly to the planter side. The planter bed contains a drain course, rigid insulation, filter fabric, planting soil, and mulch, sitting atop a waterproofing system and concrete unit paving on pedestals.
1' - 6" VARIES 4" 1" TOP SEAT 100% FSC HARDWOOD SLAT 1/2" THK SS PLATE POWDER COATED GUSSET PLATE SS HEADED ANCHOR BOLT 1/4" THK SS TOP COMB SYSTEM POWDER COATED CONCRETE CURB WATERPROOFING SYSTEM SEE ARCHITECTURAL DRAWINGS 1" LED LINEAR LIGHT CONCRETE UNIT PAVING PEDESTAL RIGID INSULATION 9" DRAIN COURSE SS ROD WITH THREAD WELDED SS PLATE 1' - 2 1/2" 3 1/2" 2 3/4" MOUNTING HOLES MULCH PLANTING SOIL WEEPHOLE, SEE ARCHITECTURAL DRAWINGS SS TOP PLATE WITH WEEPHOLES FILTER FABRIC
