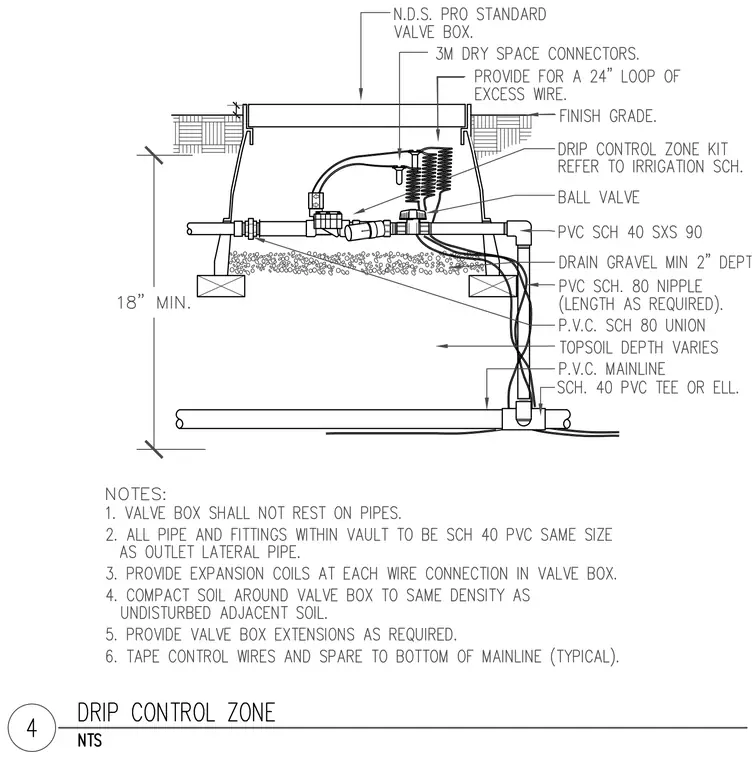

An N.D.S. Pro Standard valve box houses a drip control zone kit set over a minimum two-inch depth of drain gravel and topsoil. The assembly incorporates a PVC Schedule 40 mainline, Schedule 40 PVC tee or ell, Schedule 80 unions, Schedule 80 nipples, ball valves, and Schedule 40 solvent weld socket 90-degree elbows. Three-meter dry space connectors and expansion coils with a twenty-four-inch loop of excess wire connect the control wiring, which is taped to the underside of the mainline. The entire installation maintains an eighteen-inch minimum depth to the mainline with topsoil depth varying to finish grade.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
