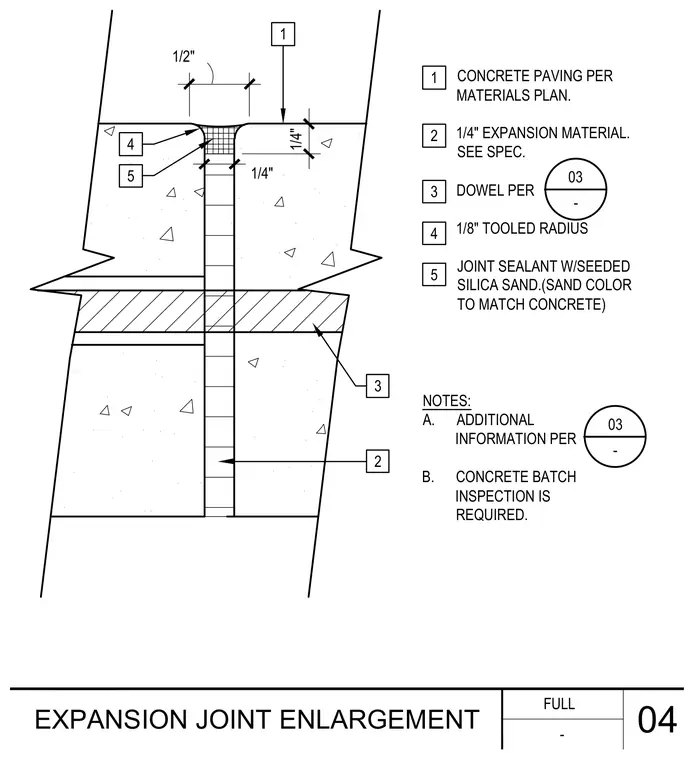

Concrete paving slabs are separated by a one-half-inch expansion joint filled with one-quarter-inch expansion material per specifications. A dowel spans the joint to transfer load between the concrete paving slabs. The top of the joint features a one-eighth-inch tooled radius and is sealed with joint sealant containing seeded silica sand in a color matching the concrete.
04 CONCRETE PAVING PER MATERIALS PLAN. 1/4" EXPANSION MATERIAL. SEE SPEC. DOWEL PER 1/8" TOOLED RADIUS JOINT SEALANT W/SEEDED SILICA SAND.(SAND COLOR TO MATCH CONCRETE) EXPANSION JOINT ENLARGEMENT FULL - 3 2 1 1 2 3 03 - 1/4" 5 4 NOTES: A. ADDITIONAL INFORMATION PER B. CONCRETE BATCH INSPECTION IS REQUIRED. 03 - 1/2" 1/4" 5 4
