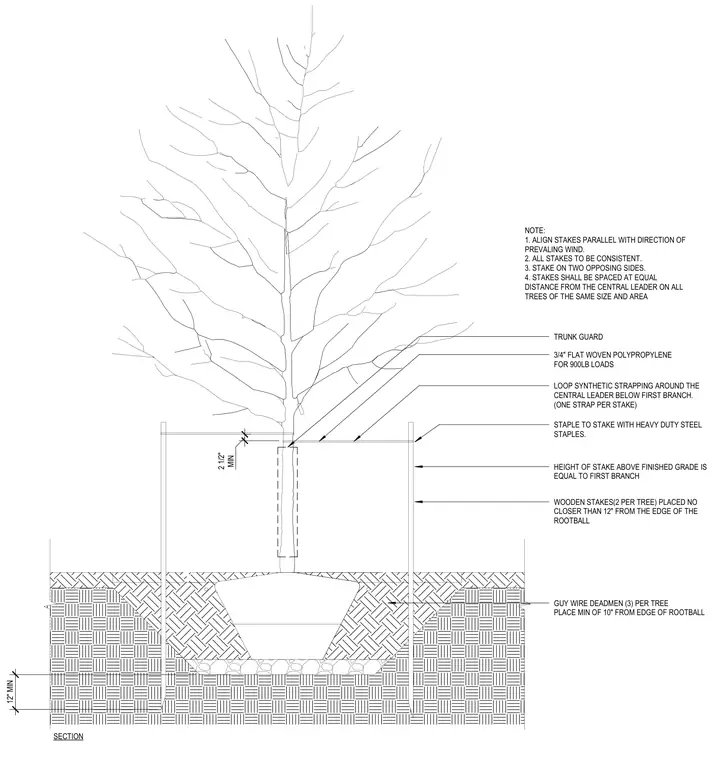

Two wooden stakes are placed on opposing sides no closer than 12 inches from the edge of the rootball, with the height of the stake above finished grade set equal to the first branch and aligned parallel with the prevailing wind direction. A trunk guard and synthetic strapping made of three-quarter-inch flat woven polypropylene rated for 900-pound loads are looped around the central leader below the first branch, using one strap per stake. Heavy-duty steel staples attach the strapping to the wooden stakes. Additionally, three guy wire deadmen are placed a minimum of 10 inches from the edge of the rootball.
SECTION NOTE: 1. ALIGN STAKES PARALLEL WITH DIRECTION OF PREVALING WIND. 2. ALL STAKES TO BE CONSISTENT. 3. STAKE ON TWO OPPOSING SIDES. 4. STAKES SHALL BE SPACED AT EQUAL DISTANCE FROM THE CENTRAL LEADER ON ALL TREES OF THE SAME SIZE AND AREA MIN 2 1/2" 12" MIN TRUNK GUARD LOOP SYNTHETIC STRAPPING AROUND THE CENTRAL LEADER BELOW FIRST BRANCH. (ONE STRAP PER STAKE) STAPLE TO STAKE WITH HEAVY DUTY STEEL STAPLES. HEIGHT OF STAKE ABOVE FINISHED GRADE IS EQUAL TO FIRST BRANCH WOODEN STAKES(2 PER TREE) PLACED NO CLOSER THAN 12" FROM THE EDGE OF THE ROOTBALL GUY WIRE DEADMEN (3) PER TREE PLACE MIN OF 10" FROM EDGE OF ROOTBALL 3/4" FLAT WOVEN POLYPROPYLENE FOR 900LB LOADS
