This assembly consists of an eighteen gauge type three hundred sixteen stainless steel capture hood with a dome connected to a stainless steel telescopic extension arm, secured with stainless steel clamping collars. A flexible exhaust duct connects the assembly to the exhaust duct provided under division twenty-three through a painted steel escutcheon at the suspended ceiling. A wall attachment bracket secures the unit laterally. The snorkel requires coordination with installed equipment to maintain proper height above the table surface or finished floor.

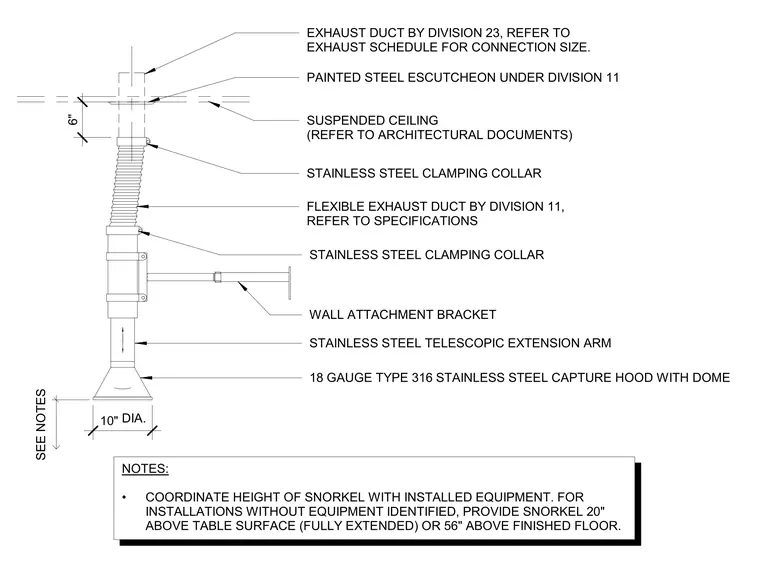

SUSPENDED CEILING (REFER TO ARCHITECTURAL DOCUMENTS) PAINTED STEEL ESCUTCHEON UNDER DIVISION 11 SEE NOTES FLEXIBLE EXHAUST DUCT BY DIVISION 11, REFER TO SPECIFICATIONS 18 GAUGE TYPE 316 STAINLESS STEEL CAPTURE HOOD WITH DOME STAINLESS STEEL CLAMPING COLLAR STAINLESS STEEL CLAMPING COLLAR WALL ATTACHMENT BRACKET STAINLESS STEEL TELESCOPIC EXTENSION ARM 6" 10" DIA. NOTES: • COORDINATE HEIGHT OF SNORKEL WITH INSTALLED EQUIPMENT. FOR INSTALLATIONS WITHOUT EQUIPMENT IDENTIFIED, PROVIDE SNORKEL 20" ABOVE TABLE SURFACE (FULLY EXTENDED) OR 56" ABOVE FINISHED FLOOR. EXHAUST DUCT BY DIVISION 23, REFER TO EXHAUST SCHEDULE FOR CONNECTION SIZE.
