Two root watering units are positioned on either side of the tree at a minimum distance of twenty-four inches from the trunk, with their tops installed even with the finish grade and top of mulch. Three-quarter-inch gravel is placed under and around each unit to facilitate water infiltration and root penetration. The basket of each unit is filled with pea gravel before locking the vandal-resistant grate. A swing assembly and one-half-inch male National Pipe Thread inlet connect each unit to a polyvinyl chloride schedule forty tee or elbow on the lateral pipe. An optional sand sock is installed around the unit, and the tree root ball sits at finish grade.

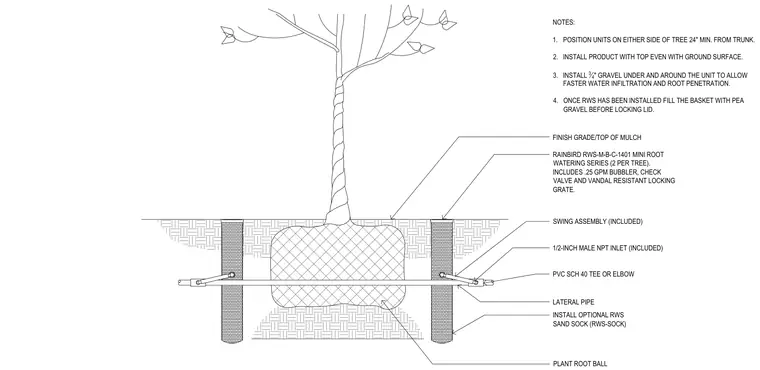

NOTES: 1. POSITION UNITS ON EITHER SIDE OF TREE 24" MIN. FROM TRUNK. 2. INSTALL PRODUCT WITH TOP EVEN WITH GROUND SURFACE. 3. INSTALL 3 4 " GRAVEL UNDER AND AROUND THE UNIT TO ALLOW FASTER WATER INFILTRATION AND ROOT PENETRATION. 4. ONCE RWS HAS BEEN INSTALLED FILL THE BASKET WITH PEA GRAVEL BEFORE LOCKING LID. PLANT ROOT BALL FINISH GRADE/TOP OF MULCH RAINBIRD RWS-M-B-C-1401 MINI ROOT WATERING SERIES (2 PER TREE). INCLUDES .25 GPM BUBBLER, CHECK VALVE AND VANDAL RESISTANT LOCKING GRATE. SWING ASSEMBLY (INCLUDED) 1/2-INCH MALE NPT INLET (INCLUDED) PVC SCH 40 TEE OR ELBOW LATERAL PIPE INSTALL OPTIONAL RWS SAND SOCK (RWS-SOCK)
