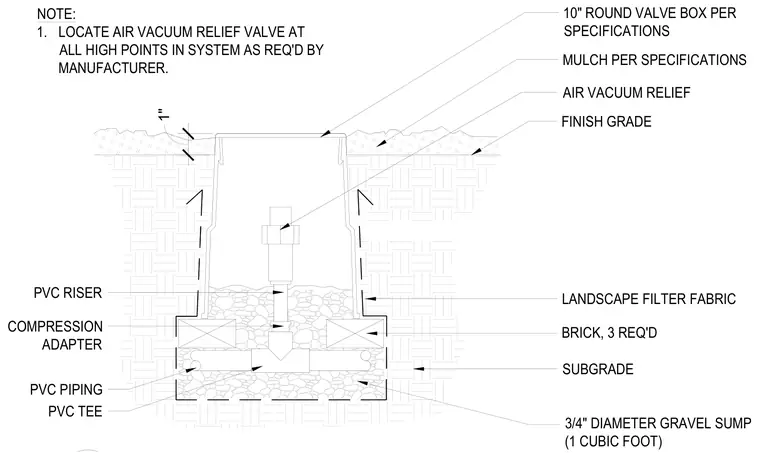

An air vacuum relief valve connects to a PVC tee and PVC piping via a compression adapter and PVC riser. The valve and piping are enclosed within a ten-inch round valve box set over a three-quarter-inch diameter gravel sump containing one cubic foot of gravel. Landscape filter fabric surrounds the gravel bed, which rests on subgrade with three required bricks supporting the assembly. The surrounding area is backfilled with mulch up to the finish grade.
10" ROUND VALVE BOX PER SPECIFICATIONS AIR VACUUM RELIEF MULCH PER SPECIFICATIONS FINISH GRADE LANDSCAPE FILTER FABRIC BRICK, 3 REQ'D SUBGRADE 3/4" DIAMETER GRAVEL SUMP (1 CUBIC FOOT) 1" NOTE: 1. LOCATE AIR VACUUM RELIEF VALVE AT ALL HIGH POINTS IN SYSTEM AS REQ'D BY MANUFACTURER. PVC RISER COMPRESSION ADAPTER PVC TEE PVC PIPING
