L-MJ56S — Greenscreen Panel Post Attachment Detail

Landscape · L-MJ56S

Greenscreen Panel Post Attachment Detail

Materials

Steel Stainless Steel

Elements

Connections

Bolted Connection

About this detail

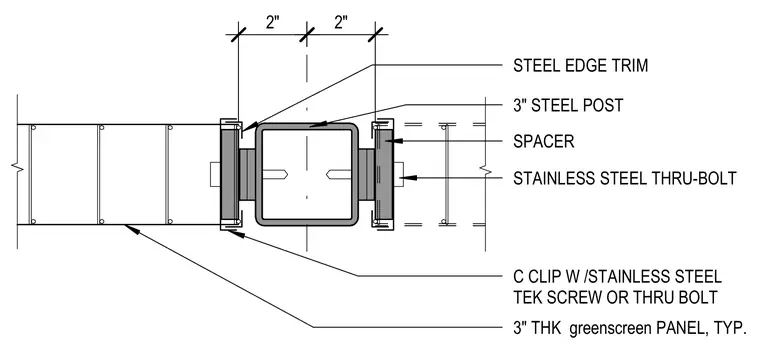

A three-inch thick greenscreen panel attaches to a three-inch steel post using stainless steel thru-bolts and spacers. A steel edge trim frames the perimeter of the assembly. A C-clip secured with a stainless steel self-drilling screw or thru-bolt fastens the panel components together.

STEEL EDGE TRIM 3" STEEL POST SPACER STAINLESS STEEL THRU-BOLT C CLIP W /STAINLESS STEEL TEK SCREW OR THRU BOLT 3" THK greenscreen PANEL, TYP. 2" 2"

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
