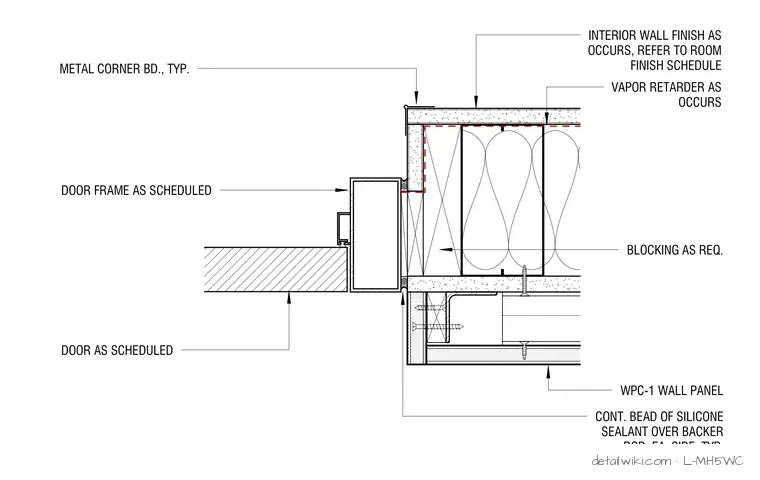

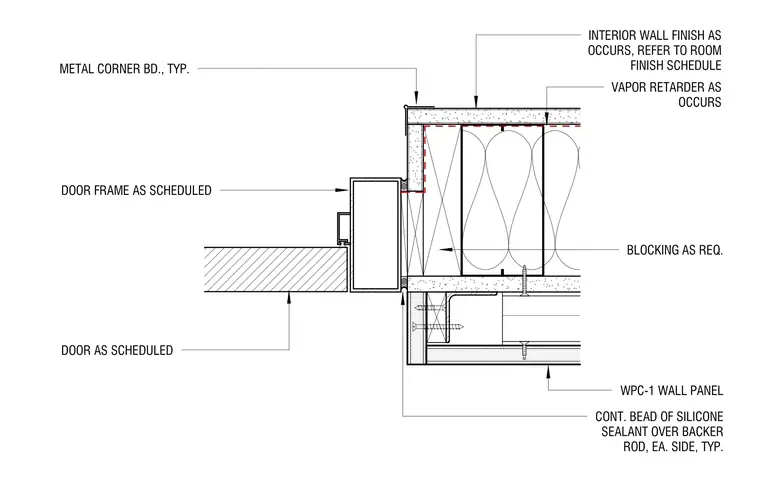

An interior wall jamb connection joins wood-plastic composite wall panel WPC-1 to a scheduled door frame. Blocking as required occurs behind framing, along with a vapor retarder as occurs and an interior wall finish referenced to the room finish schedule. A continuous bead of silicone sealant over a backer rod is applied to each side of the frame typically, and a metal corner bead is installed at the exterior edge.
DOOR AS SCHEDULED DOOR FRAME AS SCHEDULED BLOCKING AS REQ. WPC-1 WALL PANEL CONT. BEAD OF SILICONE SEALANT OVER BACKER ROD, EA. SIDE, TYP. METAL CORNER BD., TYP. VAPOR RETARDER AS OCCURS INTERIOR WALL FINISH AS OCCURS, REFER TO ROOM FINISH SCHEDULE
