Landscape · L-MGE54

Cast-In-Place Concrete Terrace with Wood Topper and Permeable Pavers

Materials

Concrete Reinforced Concrete Timber / Wood Masonry / CMU

Elements

Beams Walls Foundations / Footings Drainage Site / Paving Reinforcing

About this detail

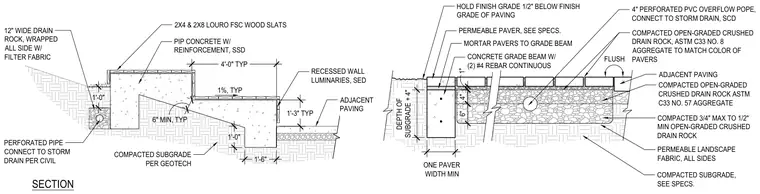

This cast-in-place concrete terrace assembly features reinforced concrete walls topped with 2x4 and 2x8 Louro FSC wood slats over compacted subgrade. The lower terrace incorporates recessed wall luminaires and slopes at one percent typical toward drainage provisions. A concrete grade beam reinforced with two continuous number 4 rebars retains the permeable pavers, which are set over ASTM C33 Number 8 aggregate matching the paver color. Drainage layers consist of ASTM C33 Number 57 aggregate and 3/4-inch to 1/2-inch open-graded crushed drain rock wrapped in permeable landscape fabric on all sides. Perforated PVC pipes at the base and behind the retaining walls tie into the storm drain system per civil specifications.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
